Battery Specifications – SUN-X-10.24-F
| Category | Parameter | Specification |
|---|---|---|
| Model | Model | SUN-X-10.24-F |
| Main Parameters | Battery Chemistry | LiFePO₄ |
| Nominal Energy | 10.24 kWh | |
| Nominal Capacity | 200 Ah | |
| Rated Voltage | 51.2 Vdc | |
| Operating Voltage Range | 43.2–57.6 Vdc | |
| Max. Charge / Discharge Current | 100 A / 150 A | |
| Scalability | Recommended ≤3 (Max. 8 in parallel) | |
| Other Parameters | Depth of Discharge | 95% |
| Communication | RS485, CAN, Wi-Fi (Optional) | |
| Dimensions (W × D × H) | 600 × 184 × 750 mm | |
| Weight | 101 kg | |
| Operating Temperature | Charge: −8 to 55 °C Discharge: −18 to 55 °C |
|
| Humidity | 5–95% RH, No Condensation | |
| Altitude | < 2000 m | |
| Protection Level | IP65 | |
| Protection Class | Class I | |
| Installation | Wall-mounted, Floor-to-battery | |
| Cycle Life | >6000 @ 25 °C @ 0.5C | |
| Certification | IEC62619, CE, UN38.3, RoHS | |
| Warranty | 5 Years / 10 Years* | |
| Manufacturer Country | China |
* Warranty period depends on the final installation site of the inverter. Refer to warranty policy for details.
Battery Specifications – SUN-X-10.24-F
| Category | Parameter | Specification |
|---|---|---|
| Model | Model | SUN-X-10.24-F |
| Main Parameters | Battery Chemistry | LiFePO₄ |
| Nominal Energy | 10.24 kWh | |
| Nominal Capacity | 200 Ah | |
| Rated Voltage | 51.2 Vdc | |
| Operating Voltage Range | 43.2–57.6 Vdc | |
| Max. Charge / Discharge Current | 100 A / 150 A | |
| Scalability | Recommended ≤3 (Max. 8 in parallel) | |
| Other Parameters | Depth of Discharge | 95% |
| Communication | RS485, CAN, Wi-Fi (Optional) | |
| Dimensions (W × D × H) | 600 × 184 × 750 mm | |
| Weight | 101 kg | |
| Operating Temperature | Charge: −8 to 55 °C Discharge: −18 to 55 °C |
|
| Humidity | 5–95% RH, No Condensation | |
| Altitude | < 2000 m | |
| Protection Level | IP65 | |
| Protection Class | Class I | |
| Installation | Wall-mounted, Floor-to-battery | |
| Cycle Life | >6000 @ 25 °C @ 0.5C | |
| Certification | IEC62619, CE, UN38.3, RoHS | |
| Warranty | 5 Years / 10 Years* | |
| Manufacturer Country | China |
* Warranty period depends on the final installation site of the inverter. Refer to warranty policy for details.
Translation missing: en.products.product.sku:

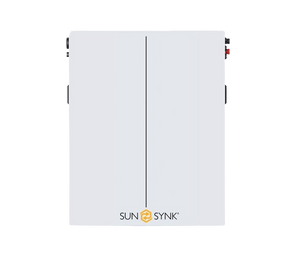

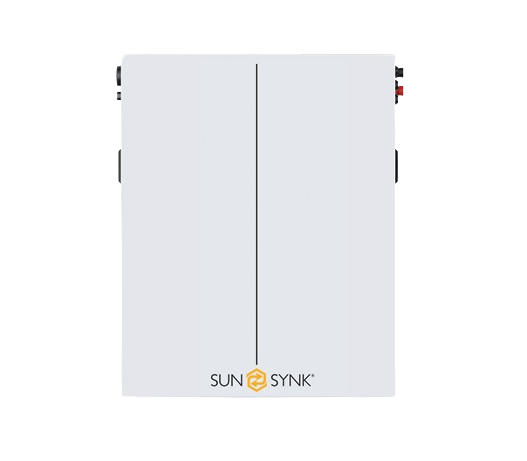

Sunsynk 10.24kwh X-Series 51.2V Lithium Battery
- Regular price
- R 33,500.00
- Sale price
- R 33,500.00
- Regular price
-
