Description
- Dual MPPT design.
- Compatible with most Li-ion and lead-acid batteries.
- Zero export function.
- Parallels up to 16 x inverters on a single phase.
- Essential and Non-Essential Loads outputs.
For firmware updates, ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.
Max. DC Input Power 13000W 15600W
Rated PV Input Voltage 370V (125~500V)
Start-up Voltage 125V
MPPT Voltage Range 150V-425V
Full Load DC Voltage Range 200V-425V
PV Input Current 26A+26A+26A
Max. PV Isc 44A+44A+44A
No. of MPPT / Strings Per MPPT 3 / 2+2+2
AC Output Data
Rated AC Output Active Power 10000 12000
Max AC Output Active Power 11000 13200
AC Output Rated Current 45.5/43.5A 54.6/52.2A
Max. AC Output Current 50/47.9A 60/57.4A
Max. Continuous AC Passthrough 70A
Peak Power (Off Grid) 2 Time of Rated Power, 10 S
Power Factor Adjustment Range 0.8 Leading to 0.8 Lagging
Power Factor 1
Output Frequency and Voltage 50 / 60Hz; L/N/PE 220/230Vac
Grid Type Split Phase; 2/3 phase; Single Phase
Total Harmonics Current Distortion (THDi) <3% (of nominal power)
DC Current Injection <0.5% In
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation
Resistor Detection, Residual Current Monitoring Unit, Output Over Current
Protection, Output Shorted Protection, Surge Protection
Over Voltage Category DC Type II/AC Type III
Certifications and Standards
Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99,
C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range -40~60°C, >45°C Derating
Cooling Smart Cooling
Noise ≤30 dB
Communication with BMS RS485; CAN
Weight 32kg
Size (Wx H x D mm) 420W×670H×233D mm (Excluding connectors and brackets)
Protection Degree IP65
Installation Style Wall-mounted
Max. DC Input Power 13000W 15600W
Rated PV Input Voltage 370V (125~500V)
Start-up Voltage 125V
MPPT Voltage Range 150V-425V
Full Load DC Voltage Range 200V-425V
PV Input Current 26A+26A+26A
Max. PV Isc 44A+44A+44A
No. of MPPT / Strings Per MPPT 3 / 2+2+2
AC Output Data
Rated AC Output Active Power 10000 12000
Max AC Output Active Power 11000 13200
AC Output Rated Current 45.5/43.5A 54.6/52.2A
Max. AC Output Current 50/47.9A 60/57.4A
Max. Continuous AC Passthrough 70A
Peak Power (Off Grid) 2 Time of Rated Power, 10 S
Power Factor Adjustment Range 0.8 Leading to 0.8 Lagging
Power Factor 1
Output Frequency and Voltage 50 / 60Hz; L/N/PE 220/230Vac
Grid Type Split Phase; 2/3 phase; Single Phase
Total Harmonics Current Distortion (THDi) <3% (of nominal power)
DC Current Injection <0.5% In
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation
Resistor Detection, Residual Current Monitoring Unit, Output Over Current
Protection, Output Shorted Protection, Surge Protection
Over Voltage Category DC Type II/AC Type III
Certifications and Standards
Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99,
C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range -40~60°C, >45°C Derating
Cooling Smart Cooling
Noise ≤30 dB
Communication with BMS RS485; CAN
Weight 32kg
Size (Wx H x D mm) 420W×670H×233D mm (Excluding connectors and brackets)
Protection Degree IP65
Installation Style Wall-mounted
Description
- Dual MPPT design.
- Compatible with most Li-ion and lead-acid batteries.
- Zero export function.
- Parallels up to 16 x inverters on a single phase.
- Essential and Non-Essential Loads outputs.
For firmware updates, ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.
Max. DC Input Power 13000W 15600W
Rated PV Input Voltage 370V (125~500V)
Start-up Voltage 125V
MPPT Voltage Range 150V-425V
Full Load DC Voltage Range 200V-425V
PV Input Current 26A+26A+26A
Max. PV Isc 44A+44A+44A
No. of MPPT / Strings Per MPPT 3 / 2+2+2
AC Output Data
Rated AC Output Active Power 10000 12000
Max AC Output Active Power 11000 13200
AC Output Rated Current 45.5/43.5A 54.6/52.2A
Max. AC Output Current 50/47.9A 60/57.4A
Max. Continuous AC Passthrough 70A
Peak Power (Off Grid) 2 Time of Rated Power, 10 S
Power Factor Adjustment Range 0.8 Leading to 0.8 Lagging
Power Factor 1
Output Frequency and Voltage 50 / 60Hz; L/N/PE 220/230Vac
Grid Type Split Phase; 2/3 phase; Single Phase
Total Harmonics Current Distortion (THDi) <3% (of nominal power)
DC Current Injection <0.5% In
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation
Resistor Detection, Residual Current Monitoring Unit, Output Over Current
Protection, Output Shorted Protection, Surge Protection
Over Voltage Category DC Type II/AC Type III
Certifications and Standards
Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99,
C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range -40~60°C, >45°C Derating
Cooling Smart Cooling
Noise ≤30 dB
Communication with BMS RS485; CAN
Weight 32kg
Size (Wx H x D mm) 420W×670H×233D mm (Excluding connectors and brackets)
Protection Degree IP65
Installation Style Wall-mounted
Max. DC Input Power 13000W 15600W
Rated PV Input Voltage 370V (125~500V)
Start-up Voltage 125V
MPPT Voltage Range 150V-425V
Full Load DC Voltage Range 200V-425V
PV Input Current 26A+26A+26A
Max. PV Isc 44A+44A+44A
No. of MPPT / Strings Per MPPT 3 / 2+2+2
AC Output Data
Rated AC Output Active Power 10000 12000
Max AC Output Active Power 11000 13200
AC Output Rated Current 45.5/43.5A 54.6/52.2A
Max. AC Output Current 50/47.9A 60/57.4A
Max. Continuous AC Passthrough 70A
Peak Power (Off Grid) 2 Time of Rated Power, 10 S
Power Factor Adjustment Range 0.8 Leading to 0.8 Lagging
Power Factor 1
Output Frequency and Voltage 50 / 60Hz; L/N/PE 220/230Vac
Grid Type Split Phase; 2/3 phase; Single Phase
Total Harmonics Current Distortion (THDi) <3% (of nominal power)
DC Current Injection <0.5% In
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation
Resistor Detection, Residual Current Monitoring Unit, Output Over Current
Protection, Output Shorted Protection, Surge Protection
Over Voltage Category DC Type II/AC Type III
Certifications and Standards
Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99,
C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range -40~60°C, >45°C Derating
Cooling Smart Cooling
Noise ≤30 dB
Communication with BMS RS485; CAN
Weight 32kg
Size (Wx H x D mm) 420W×670H×233D mm (Excluding connectors and brackets)
Protection Degree IP65
Installation Style Wall-mounted

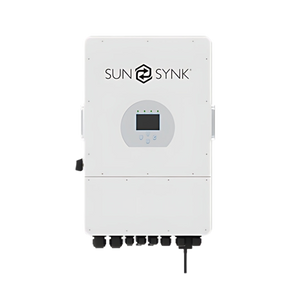

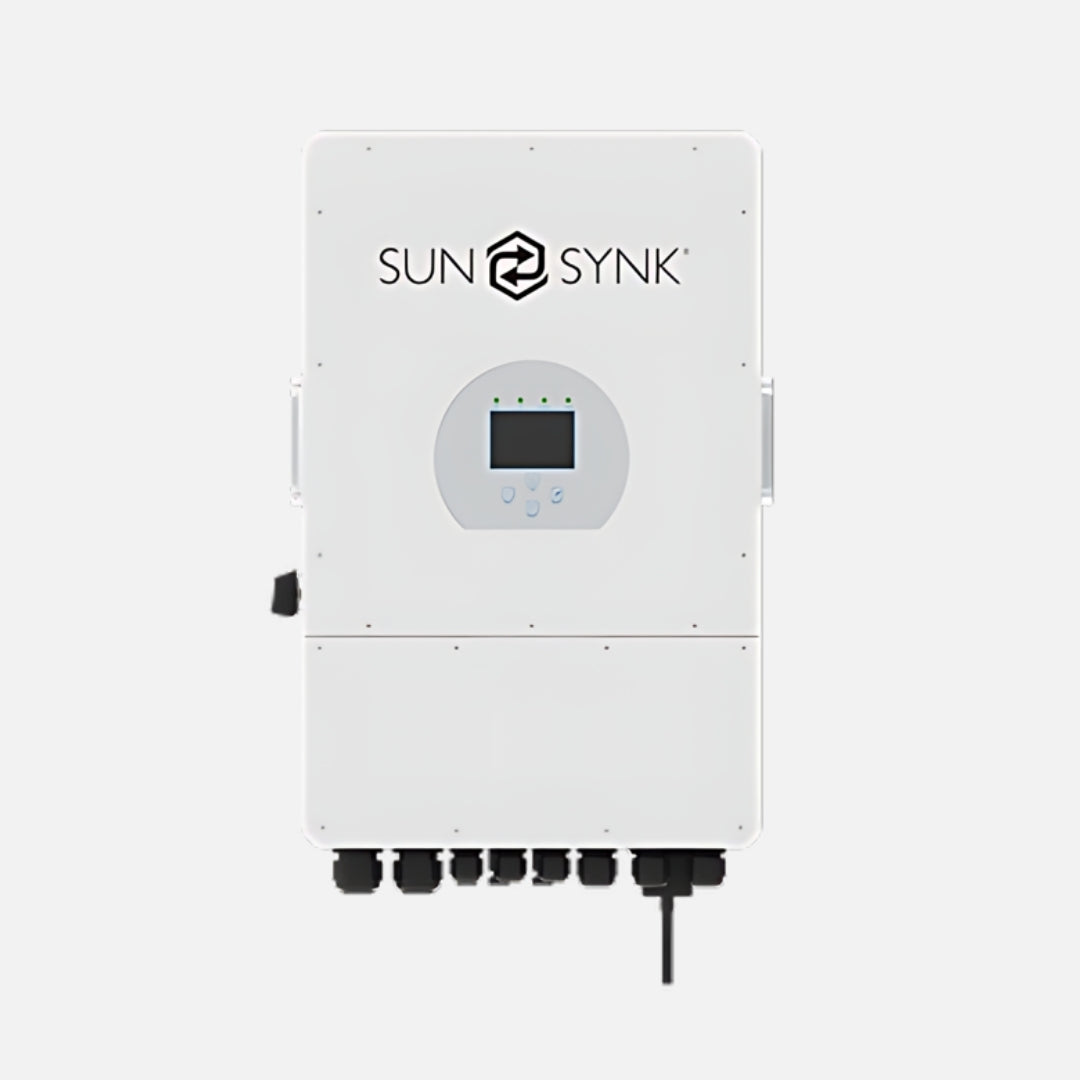

SunSynk Inverter
by
Sunsynk
Translation missing: en.products.product.sku:
10kw Sunsynk Inverter Single Phase
- Regular price
- R 37,900.00
- Sale price
- R 37,900.00
- Regular price
-
Note :
This price is STRICTLY for Installers and Resellers - To ensure that you are installer/reseller c...
