Description

Specifications

Input (PV DC)
  • SNA2-EU-LT 10-14K
    Max. PV input: 24kW with 2 MPPTs
    Support up to 16 units in parallel for on/off grid
    Max. charging and discharging current: 250A
    Support Hybrid Working Modes
    Separate Gen Port for
    - Auto start-stop
    - Working with the existing grid-tied system
    - Smart load management
    Lite Design for Easier Installation
    Intelligent Operating Mode to Lower Energy Costs
    & Quick ROI
    (Single-Phase)
Battery
  • Compatible Battery Type: Lithium-ion/Lead-Acid
  • Rated Battery Voltage: 48/51.2V
  • Battery Voltage Range: 46.4-60/38.4-60V
  • Max. Charging/Discharging Current: 250A
  • Max. Charging/Discharging Power: 12000W
  • Force Wake Up Battery from PV and Grid Function: Yes
Grid
  • Rated AC Voltage: 230V
  • Acceptable Input Voltage Range: 90-280V
  • Rated AC Frequency: 50Hz
  • Rated AC Input Current: 100A
  • Rated AC Input Power: 12000W
  • Power Factor (PF): 0.99
  • Total Harmonic Distortion (THDI): <5%
  • Max. Continuous AC Passthrough Current: 100A
UPS (Uninterruptible Power Supply)
  • Rated Output Power: 12000W
  • Rated Output Voltage: 230V
  • Rated Output Current: 60/50A
  • Rated Output Frequency: 50/60Hz (Auto detection)
  • Surge Power, Duration: 2Pn, 5s
  • Switching Time (UPS): <10ms@Single; <20ms@Parallel
  • Wave Form: Sine wave
  • Total Harmonic Distortion (THDV): <3%
GEN (Generator)
  • Acceptable Input Voltage Range: 90~280V
  • Max. AC Input Voltage: 280V
  • Max. AC Input Current: 63A
  • Rated Input Frequency: 50Hz/60Hz (Auto detection)
  • Transfer Time: <10ms@Single; <20ms@Parallel
  • THDV: <3%
  • Overload Protection: 5s@≥150% load / 10s@110%~150% load
Efficiency
  • Max. Efficiency: 90.0%
  • Max. Charging/Discharging Efficiency: 90.0%
  • Max. MPPT Efficiency: 99.0%
General
  • Dimensions (WxHxD): 530x830x150mm / 17.7225.595.9 inches
  • Weight: 40kg
  • Ingress Protection Rating: IP20
  • Operating Environment Temperature Range: 0~45°C
  • Storage Temperature Range: -15~60°C
  • Relative Humidity: 5% ~ 95%
  • Display & Communication Interface: LCD+RGB, RS485 / Wi-Fi / CAN
  • Warranty: 2 years
  • Cooling Method: Smart cooling
  • Topology on AC / Battery Side: Transformer-less / Transformer
  • Altitude: <2000m
  • Noise Emission (typical): <50dB
  • Standards & Certification: CE
Description

Specifications

Input (PV DC)
  • SNA2-EU-LT 10-14K
    Max. PV input: 24kW with 2 MPPTs
    Support up to 16 units in parallel for on/off grid
    Max. charging and discharging current: 250A
    Support Hybrid Working Modes
    Separate Gen Port for
    - Auto start-stop
    - Working with the existing grid-tied system
    - Smart load management
    Lite Design for Easier Installation
    Intelligent Operating Mode to Lower Energy Costs
    & Quick ROI
    (Single-Phase)
Battery
  • Compatible Battery Type: Lithium-ion/Lead-Acid
  • Rated Battery Voltage: 48/51.2V
  • Battery Voltage Range: 46.4-60/38.4-60V
  • Max. Charging/Discharging Current: 250A
  • Max. Charging/Discharging Power: 12000W
  • Force Wake Up Battery from PV and Grid Function: Yes
Grid
  • Rated AC Voltage: 230V
  • Acceptable Input Voltage Range: 90-280V
  • Rated AC Frequency: 50Hz
  • Rated AC Input Current: 100A
  • Rated AC Input Power: 12000W
  • Power Factor (PF): 0.99
  • Total Harmonic Distortion (THDI): <5%
  • Max. Continuous AC Passthrough Current: 100A
UPS (Uninterruptible Power Supply)
  • Rated Output Power: 12000W
  • Rated Output Voltage: 230V
  • Rated Output Current: 60/50A
  • Rated Output Frequency: 50/60Hz (Auto detection)
  • Surge Power, Duration: 2Pn, 5s
  • Switching Time (UPS): <10ms@Single; <20ms@Parallel
  • Wave Form: Sine wave
  • Total Harmonic Distortion (THDV): <3%
GEN (Generator)
  • Acceptable Input Voltage Range: 90~280V
  • Max. AC Input Voltage: 280V
  • Max. AC Input Current: 63A
  • Rated Input Frequency: 50Hz/60Hz (Auto detection)
  • Transfer Time: <10ms@Single; <20ms@Parallel
  • THDV: <3%
  • Overload Protection: 5s@≥150% load / 10s@110%~150% load
Efficiency
  • Max. Efficiency: 90.0%
  • Max. Charging/Discharging Efficiency: 90.0%
  • Max. MPPT Efficiency: 99.0%
General
  • Dimensions (WxHxD): 530x830x150mm / 17.7225.595.9 inches
  • Weight: 40kg
  • Ingress Protection Rating: IP20
  • Operating Environment Temperature Range: 0~45°C
  • Storage Temperature Range: -15~60°C
  • Relative Humidity: 5% ~ 95%
  • Display & Communication Interface: LCD+RGB, RS485 / Wi-Fi / CAN
  • Warranty: 2 years
  • Cooling Method: Smart cooling
  • Topology on AC / Battery Side: Transformer-less / Transformer
  • Altitude: <2000m
  • Noise Emission (typical): <50dB
  • Standards & Certification: CE
LuxPower by Luxpower

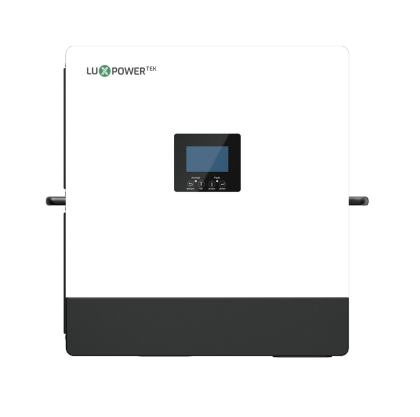

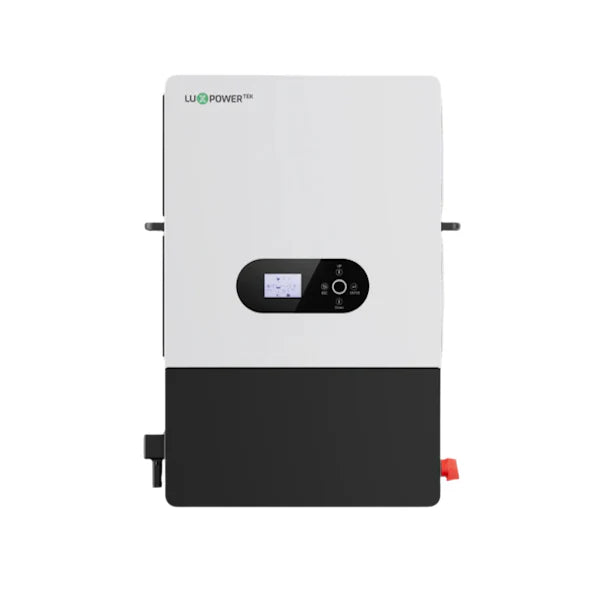

Luxpower 12kW Eco Hybrid Inverter Single Phase SNA12000

R 17,950.00
R 17,950.00
Note :
Registered installers and distributors qualify for exclusive pricing. Contact us for more details...  Read more
