Description

Specifications

Input (PV DC)
  • Max. PV Array Power: 24000W (12000/12000)
  • Rated PV Input Voltage: 320V
  • Number of Independent MPPT Inputs: 2
  • PV Input Voltage Range: 100-480V
  • MPPT Voltage Range: 120-385V
  • Start-up Voltage: 100V
  • Max. PV Input Current per MPPT: 35A
  • Max. PV Short-Circuit Current Input per MPPT: 51A
Battery
  • Compatible Battery Type: Lithium-ion/Lead-Acid
  • Rated Battery Voltage: 48/51.2V
  • Battery Voltage Range: 46.4-60/38.4-60V
  • Max. Charging/Discharging Current: 250A
  • Max. Charging/Discharging Power: 12000W
  • Force Wake Up Battery from PV and Grid Function: Yes
Grid
  • Rated AC Voltage: 230V
  • Acceptable Input Voltage Range: 90-280V
  • Rated AC Frequency: 50Hz
  • Rated AC Input Current: 100A
  • Rated AC Input Power: 12000W
  • Power Factor (PF): 0.99
  • Total Harmonic Distortion (THDI): <5%
  • Max. Continuous AC Passthrough Current: 100A
UPS (Uninterruptible Power Supply)
  • Rated Output Power: 12000W
  • Rated Output Voltage: 230V
  • Rated Output Current: 60/50A
  • Rated Output Frequency: 50/60Hz (Auto detection)
  • Surge Power, Duration: 2Pn, 5s
  • Switching Time (UPS): <10ms@Single; <20ms@Parallel
  • Wave Form: Sine wave
  • Total Harmonic Distortion (THDV): <3%
GEN (Generator)
  • Acceptable Input Voltage Range: 90~280V
  • Max. AC Input Voltage: 280V
  • Max. AC Input Current: 63A
  • Rated Input Frequency: 50Hz/60Hz (Auto detection)
  • Transfer Time: <10ms@Single; <20ms@Parallel
  • THDV: <3%
  • Overload Protection: 5s@≥150% load / 10s@110%~150% load
Efficiency
  • Max. Efficiency: 90.0%
  • Max. Charging/Discharging Efficiency: 90.0%
  • Max. MPPT Efficiency: 99.0%
Protection
  • PV Reverse Polarity Protection: Yes
  • Over Current/Voltage Protection: Yes
  • AC Short-Circuit Current Protection: Yes
  • Grid Monitoring: Yes
  • DC Switch: Yes
  • DC/AC Surge Protection Type III: Yes
  • Battery Reverse Polarity Protection: Yes
  • AC/UPS/Battery/Generator Breakers Integrated: Yes
General
  • Dimensions (WxHxD): 530x830x150mm / 17.7225.595.9 inches
  • Weight: 40kg
  • Ingress Protection Rating: IP20
  • Operating Environment Temperature Range: 0~45°C
  • Storage Temperature Range: -15~60°C
  • Relative Humidity: 5% ~ 95%
  • Display & Communication Interface: LCD+RGB, RS485 / Wi-Fi / CAN
  • Warranty: 2 years
  • Cooling Method: Smart cooling
  • Topology on AC / Battery Side: Transformer-less / Transformer
  • Altitude: <2000m
  • Noise Emission (typical): <50dB
  • Standards & Certification: CE
Description

Specifications

Input (PV DC)
  • Max. PV Array Power: 24000W (12000/12000)
  • Rated PV Input Voltage: 320V
  • Number of Independent MPPT Inputs: 2
  • PV Input Voltage Range: 100-480V
  • MPPT Voltage Range: 120-385V
  • Start-up Voltage: 100V
  • Max. PV Input Current per MPPT: 35A
  • Max. PV Short-Circuit Current Input per MPPT: 51A
Battery
  • Compatible Battery Type: Lithium-ion/Lead-Acid
  • Rated Battery Voltage: 48/51.2V
  • Battery Voltage Range: 46.4-60/38.4-60V
  • Max. Charging/Discharging Current: 250A
  • Max. Charging/Discharging Power: 12000W
  • Force Wake Up Battery from PV and Grid Function: Yes
Grid
  • Rated AC Voltage: 230V
  • Acceptable Input Voltage Range: 90-280V
  • Rated AC Frequency: 50Hz
  • Rated AC Input Current: 100A
  • Rated AC Input Power: 12000W
  • Power Factor (PF): 0.99
  • Total Harmonic Distortion (THDI): <5%
  • Max. Continuous AC Passthrough Current: 100A
UPS (Uninterruptible Power Supply)
  • Rated Output Power: 12000W
  • Rated Output Voltage: 230V
  • Rated Output Current: 60/50A
  • Rated Output Frequency: 50/60Hz (Auto detection)
  • Surge Power, Duration: 2Pn, 5s
  • Switching Time (UPS): <10ms@Single; <20ms@Parallel
  • Wave Form: Sine wave
  • Total Harmonic Distortion (THDV): <3%
GEN (Generator)
  • Acceptable Input Voltage Range: 90~280V
  • Max. AC Input Voltage: 280V
  • Max. AC Input Current: 63A
  • Rated Input Frequency: 50Hz/60Hz (Auto detection)
  • Transfer Time: <10ms@Single; <20ms@Parallel
  • THDV: <3%
  • Overload Protection: 5s@≥150% load / 10s@110%~150% load
Efficiency
  • Max. Efficiency: 90.0%
  • Max. Charging/Discharging Efficiency: 90.0%
  • Max. MPPT Efficiency: 99.0%
Protection
  • PV Reverse Polarity Protection: Yes
  • Over Current/Voltage Protection: Yes
  • AC Short-Circuit Current Protection: Yes
  • Grid Monitoring: Yes
  • DC Switch: Yes
  • DC/AC Surge Protection Type III: Yes
  • Battery Reverse Polarity Protection: Yes
  • AC/UPS/Battery/Generator Breakers Integrated: Yes
General
  • Dimensions (WxHxD): 530x830x150mm / 17.7225.595.9 inches
  • Weight: 40kg
  • Ingress Protection Rating: IP20
  • Operating Environment Temperature Range: 0~45°C
  • Storage Temperature Range: -15~60°C
  • Relative Humidity: 5% ~ 95%
  • Display & Communication Interface: LCD+RGB, RS485 / Wi-Fi / CAN
  • Warranty: 2 years
  • Cooling Method: Smart cooling
  • Topology on AC / Battery Side: Transformer-less / Transformer
  • Altitude: <2000m
  • Noise Emission (typical): <50dB
  • Standards & Certification: CE
LuxPower by Luxpower

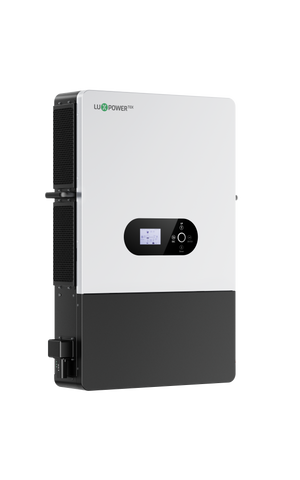

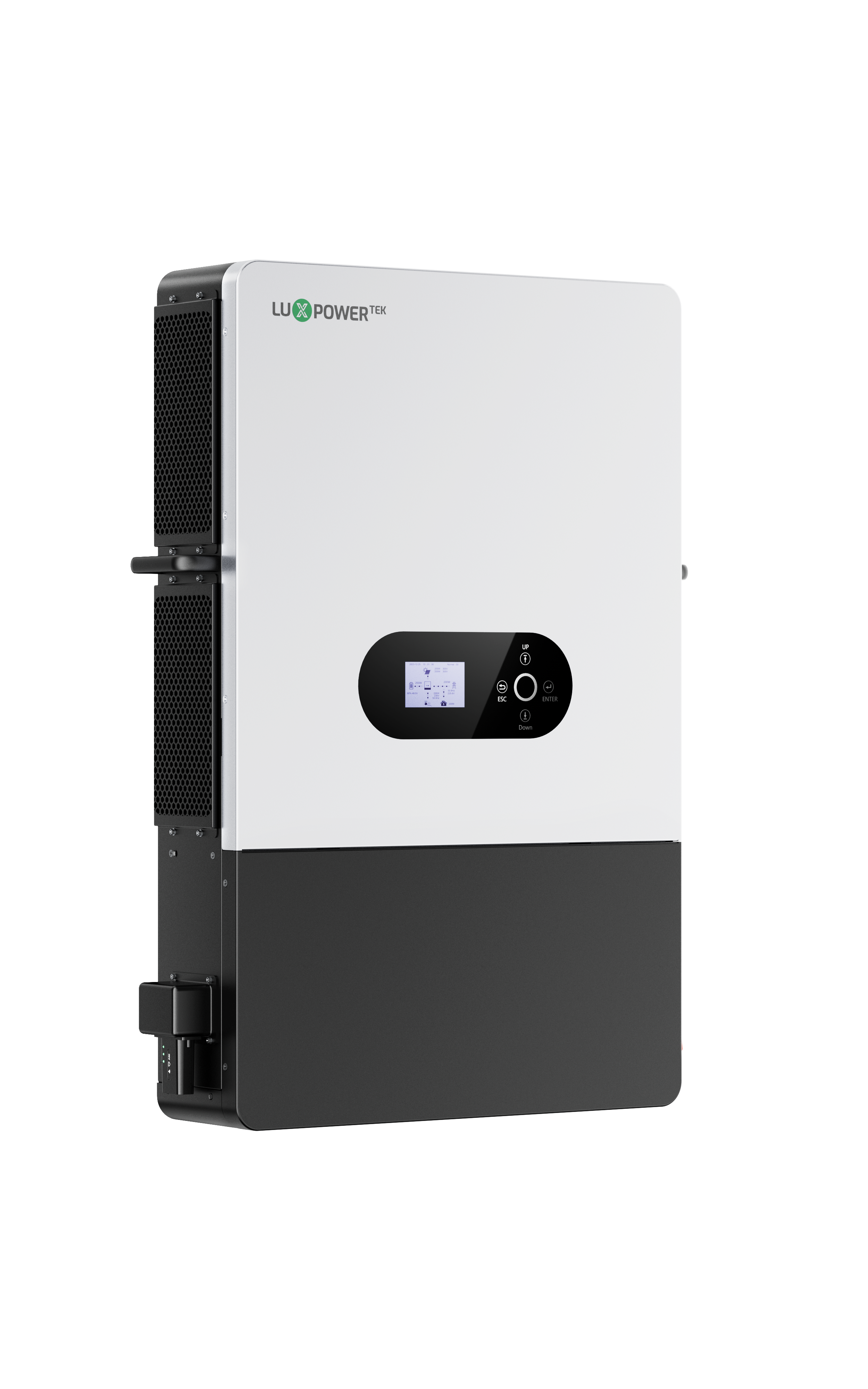

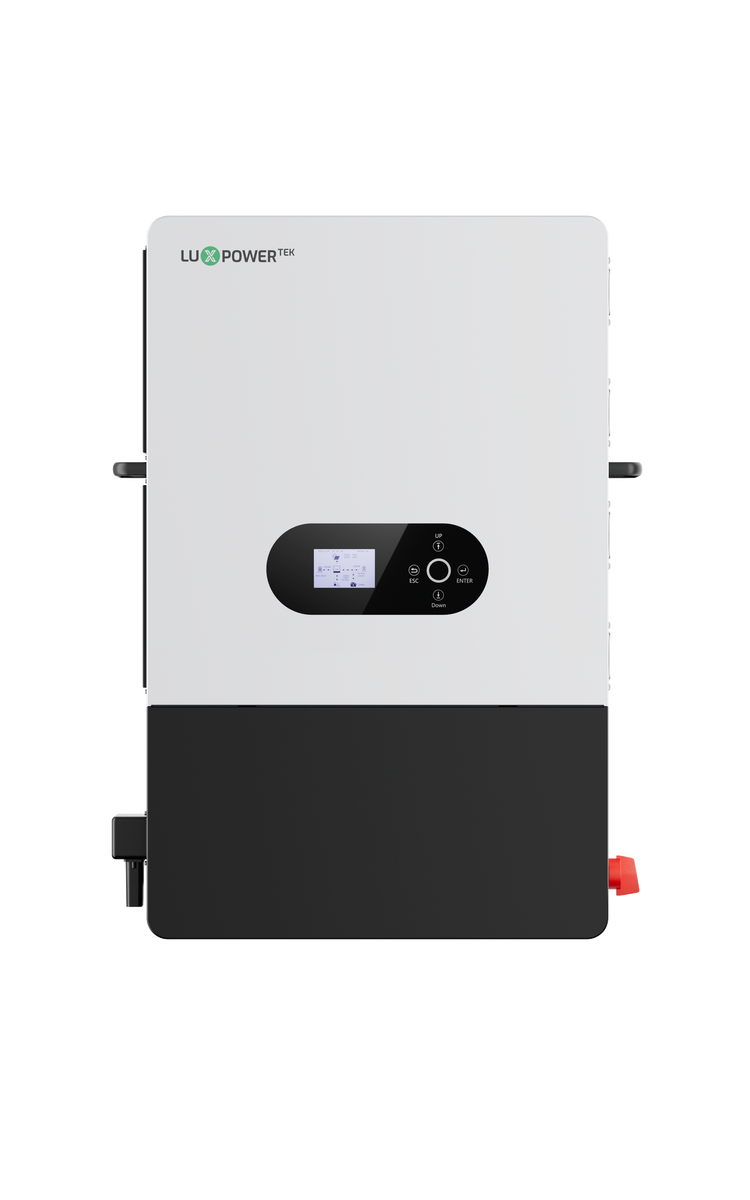

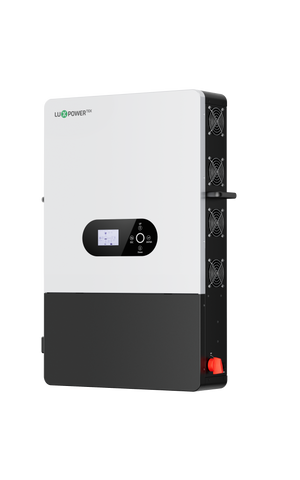

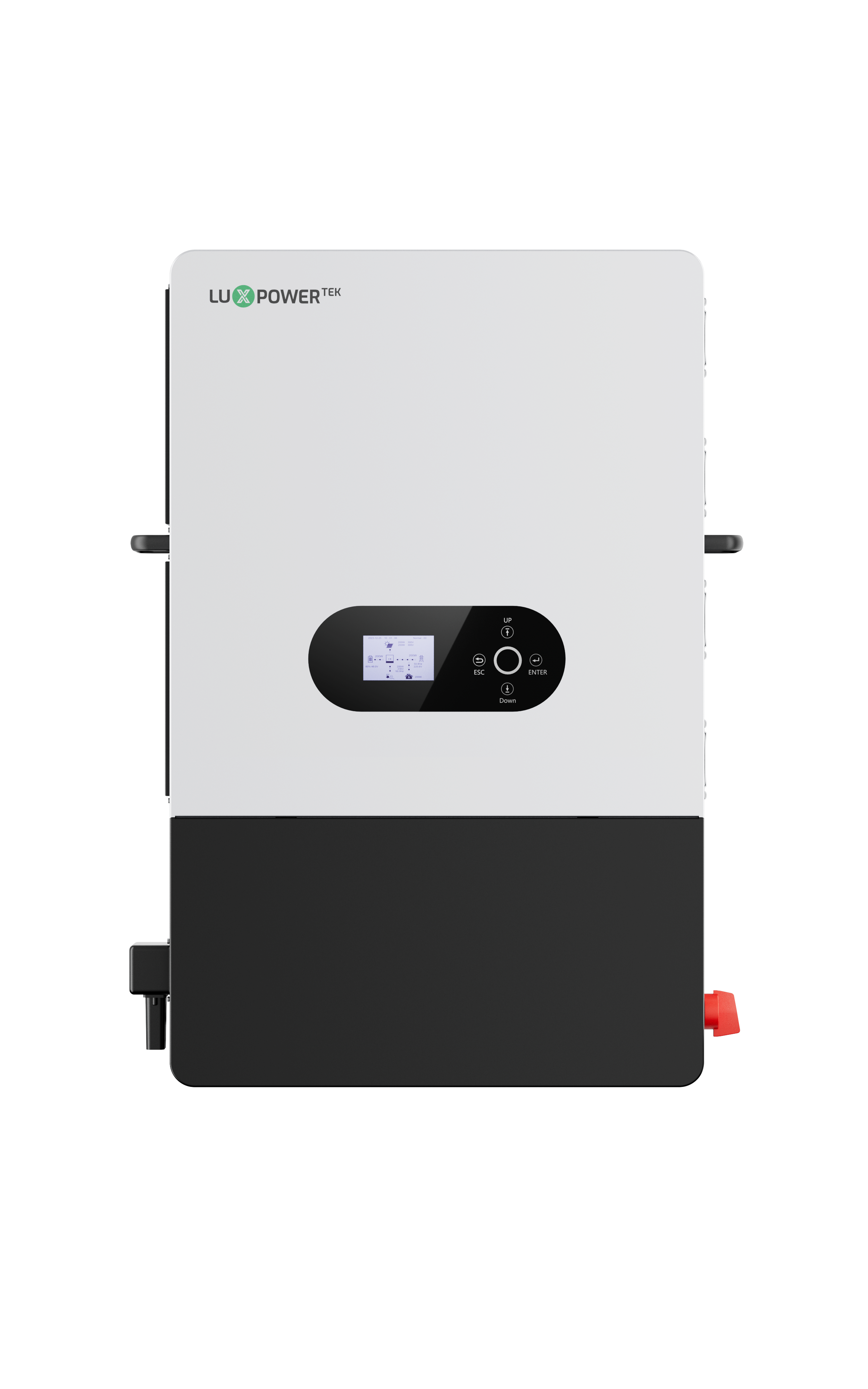

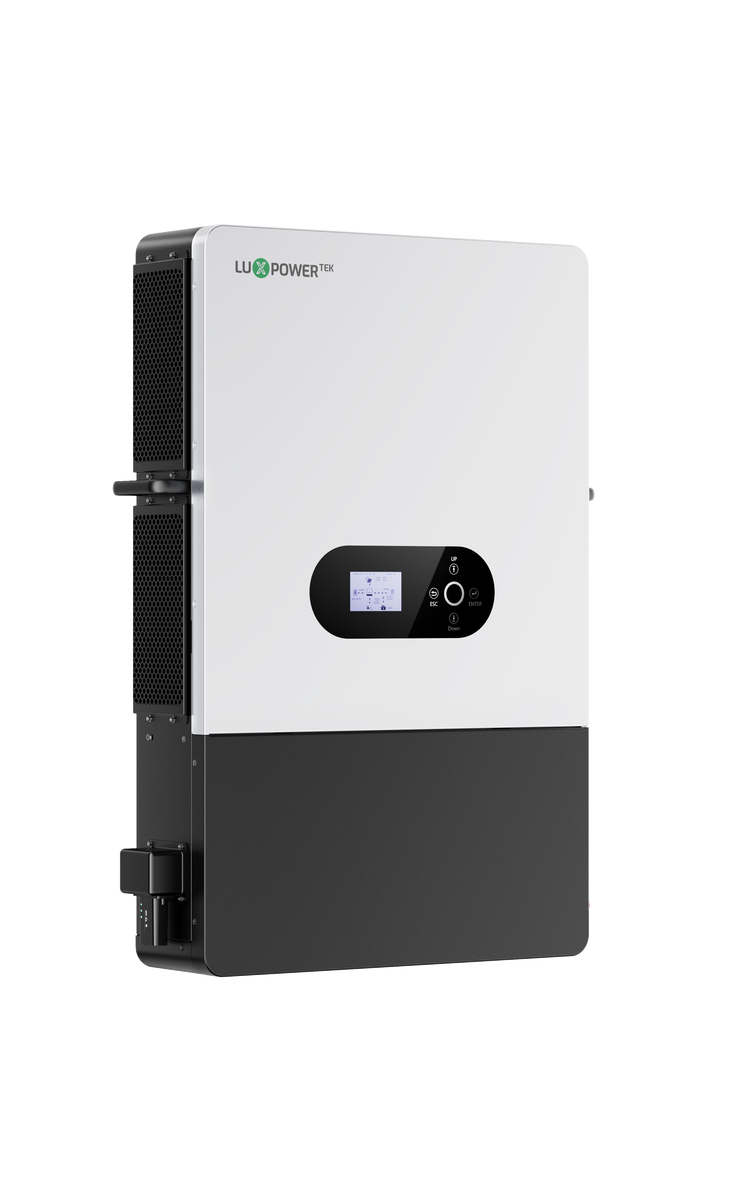

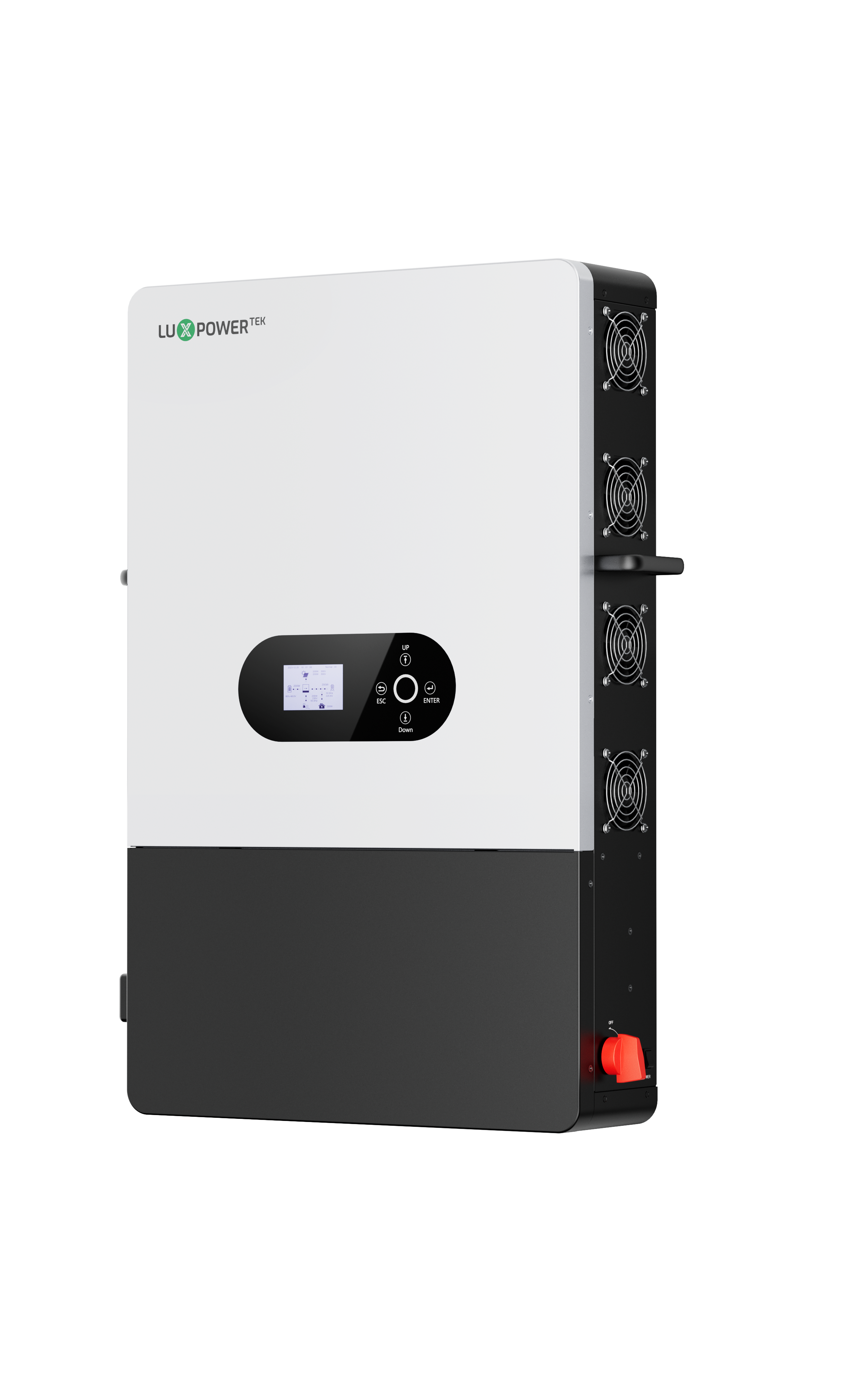

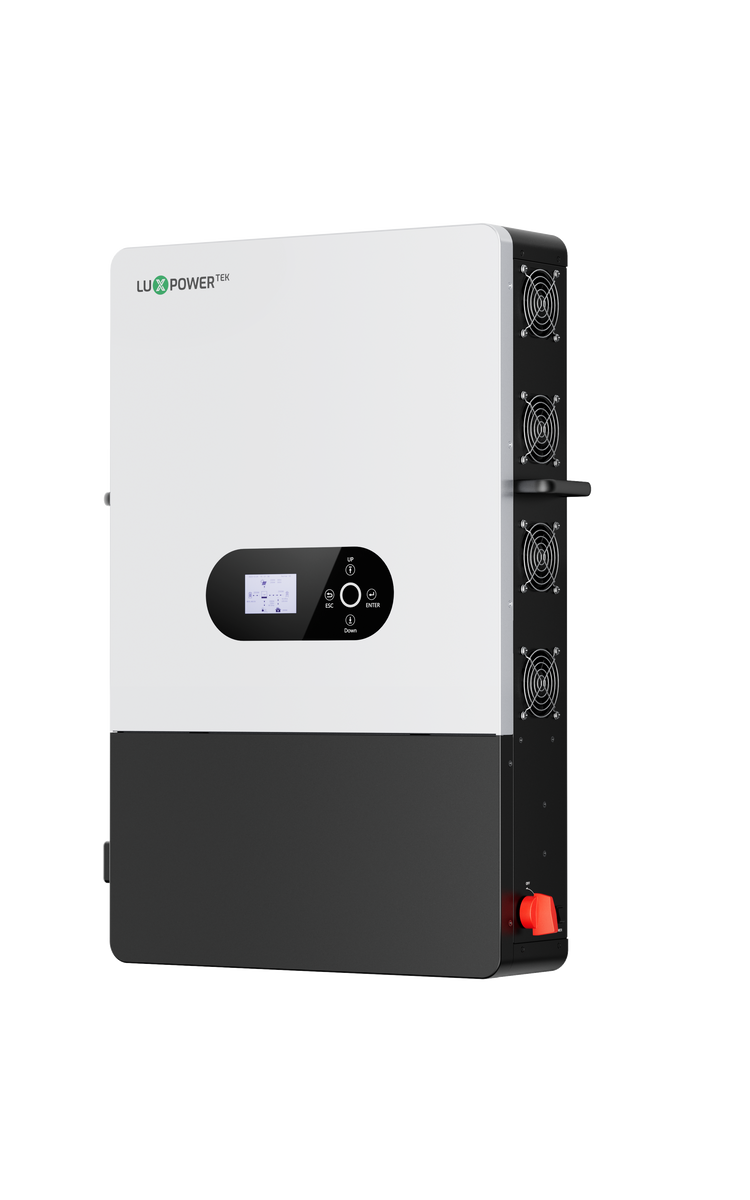

Luxpower 12kW Inverter Single Phase SNA12000

R 18,390.00
R 18,390.00
