General Data:

• Operating Temperature Range: -25~55°C
• Cooling: Fan
• Noise: <30dB
• Communication with BMS: RS485; CAN
• Weight: 34.5Kg
• Size (mm): 422W x 702H x 281D
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 Years
• SA: NRS 097 certified and COCT Certified

Features:

• Supporting Wi-Fi or GSM monitoring
• Visual power flow screen
• Parallel/Multi invert function grid-tied and off-grid
• Compatible with main electrical grid voltages or power generators
• Self-consumption and feed-in to the grid
• Auto restart while AC is recovering
• Auto earth bond feature (Via a relay)
• Fully programmable controller
• Programmable supply priority for battery or grid
• Programmable multiple operation modes: on-grid/off-grid & UPS
• Configurable battery charging - current/voltage based on the application
• Configurable AC / solar / generator charger priority by LCD setting
• Overload/over-temperature/short-circuit protection
• Smart battery charger design for optimized battery protection
• Limiting function installed to prevent excess power overflow to grid
• Colourful touch LCD, IP65 protection degree
• DC couple and AC couple to retrofit existing solar system
• Max. 16 inverters in parallel; Support multiple batteries parallel
• Max. charging/discharging current of 190A

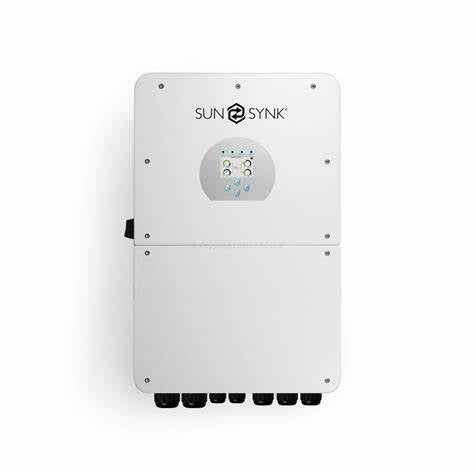

• 16kW super hybrid inverter
• Support storing energy from diesel generator

Battery Input Data:

• Battery type: Lead-acid or Lithium-ion
• Battery Voltage Range: 43~60V
• Max. Charging Current: 275A
• Max. Discharging Current: 300A
• Charging Curve: 3 Stages / Equalisation
• External Temperature Sensor: Yes
• Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS
