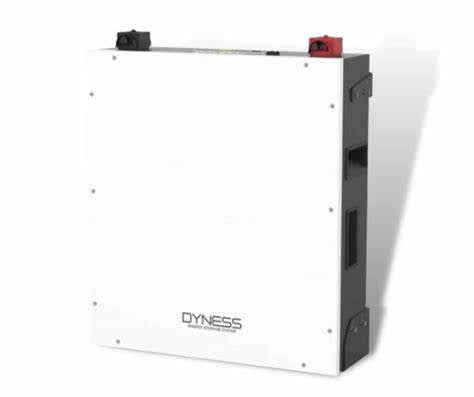

Dyness 4.8KW Lithium Battery A48100

A48100 lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of A48100 according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited  installation space, long power backup time and long service life.

Specifications:

• Battery Type: LiFePo4
• Warranty: 10-years
• Nominal Battery Energy: 4.8kWh
• Nominal Capacity: 100Ah
• Nominal Voltage: 48V
• Charge Cut-Off Voltage: 54.75V
• Discharge Cut-Off Voltage: 42V
• Recommended Charge & Discharge Current: 50A
• Maximum Charge & Discharge Current: 75A
• IP20: Protected against dust and environmental factors.
• Charge Temperature: Operates flawlessly between 0°C to 55°C.
• Discharge Temperature: Functions smoothly between -20°C to 55°C.
• Cycle Life: Provides up to 6000 cycles, ensuring long-term value.
• Communication: Stay connected with CAN/RS485/RS232 options.
• Installation Type: Choose between floor and wall mounting.
• Weight:  45 kg.
• Dimensions (W x D x H):  504 x 597 x 155 mm.

Product Properties

A48100 energy storage product’s positive electrode materials are lithium iron phosphate, battery cells are managed effectively by BMS with better performance, the system’s features as below:

• Comply with European ROHS, Certified SGS, employ non-toxic, non-pollution environment friendly battery.

• Anode materials are lithium iron phosphate (LiFePO4), safer with longer life span.

• Carries battery management system with better performance, possesses protection function like over-discharge, over-charge, over-current, abnormal temperature.

• Self-management on charging and discharging, Single core balancing function.

• Intelligent design configures integrated inspection module.

• Flexible configurations allow parallel of multi battery for longer standby time.

• Self-ventilation with lower system noise.

• Less battery self-discharge, then recharging period can be up to 10 months during the storage.

• No memory effect so that battery can be charged and discharged shallowly.

• With wide range of temperature for working environment, -20℃ ~ +55℃, circulation span and discharging performance are well under high temperature.

• Less volume, lighter weight.
