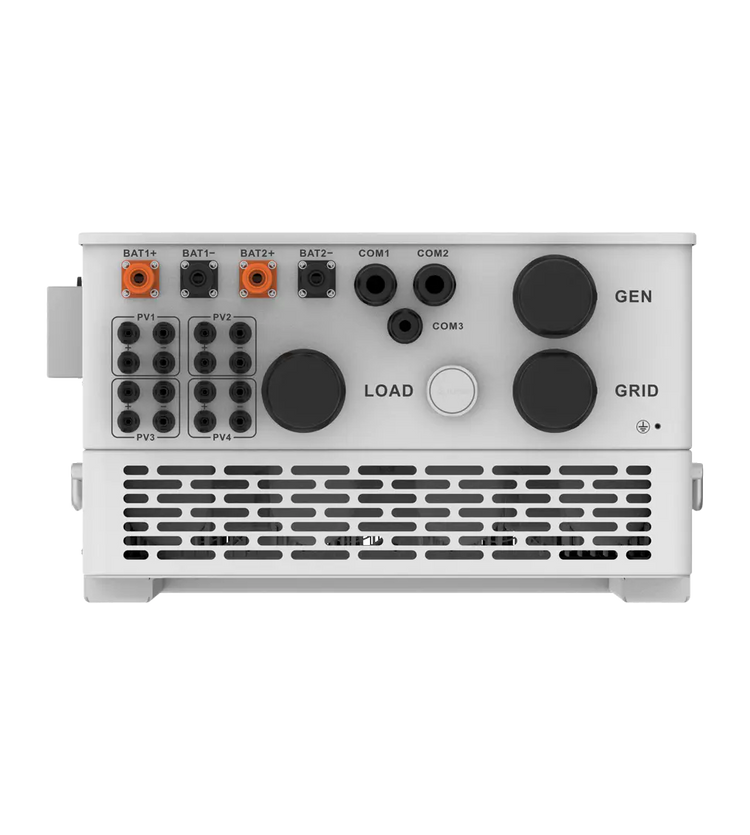

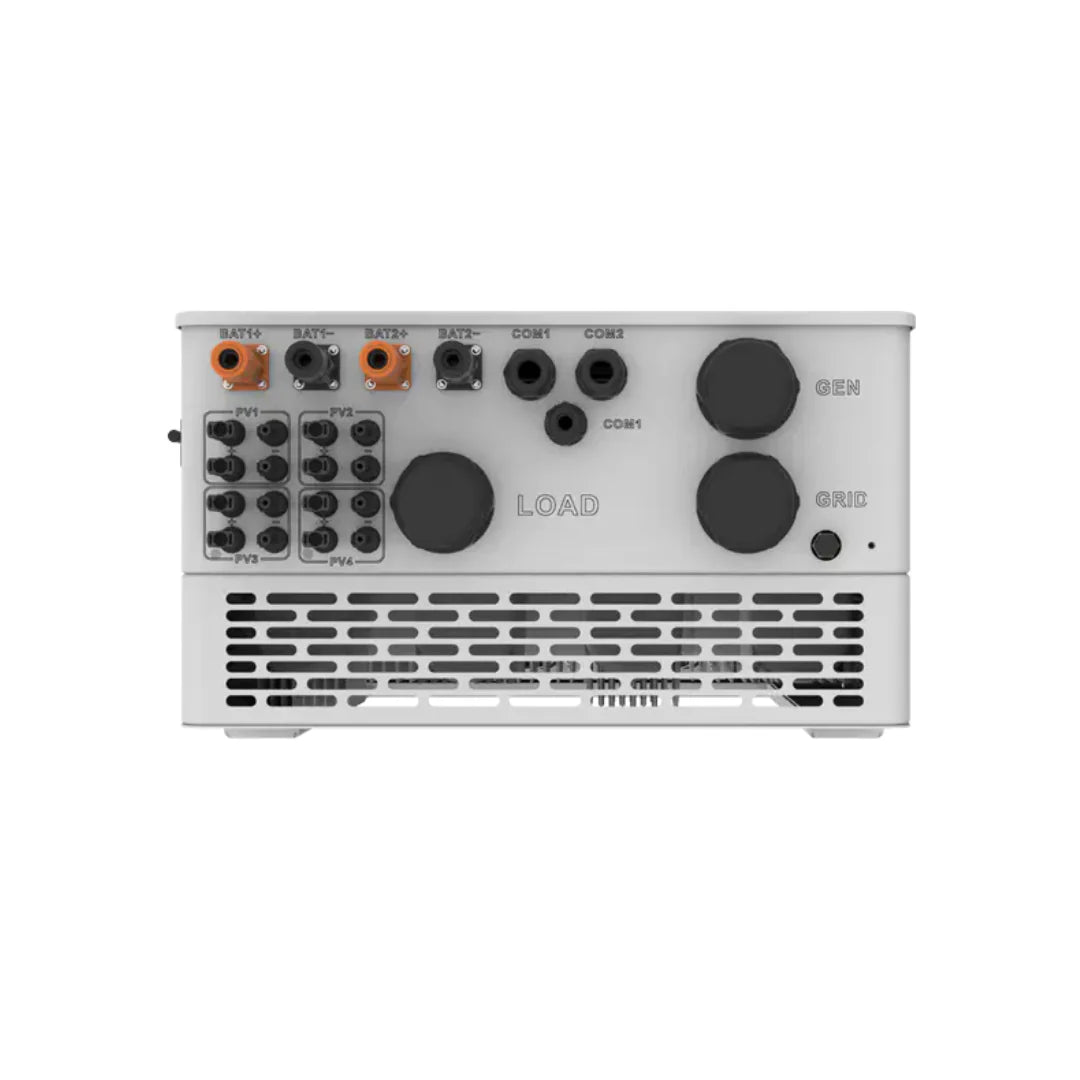

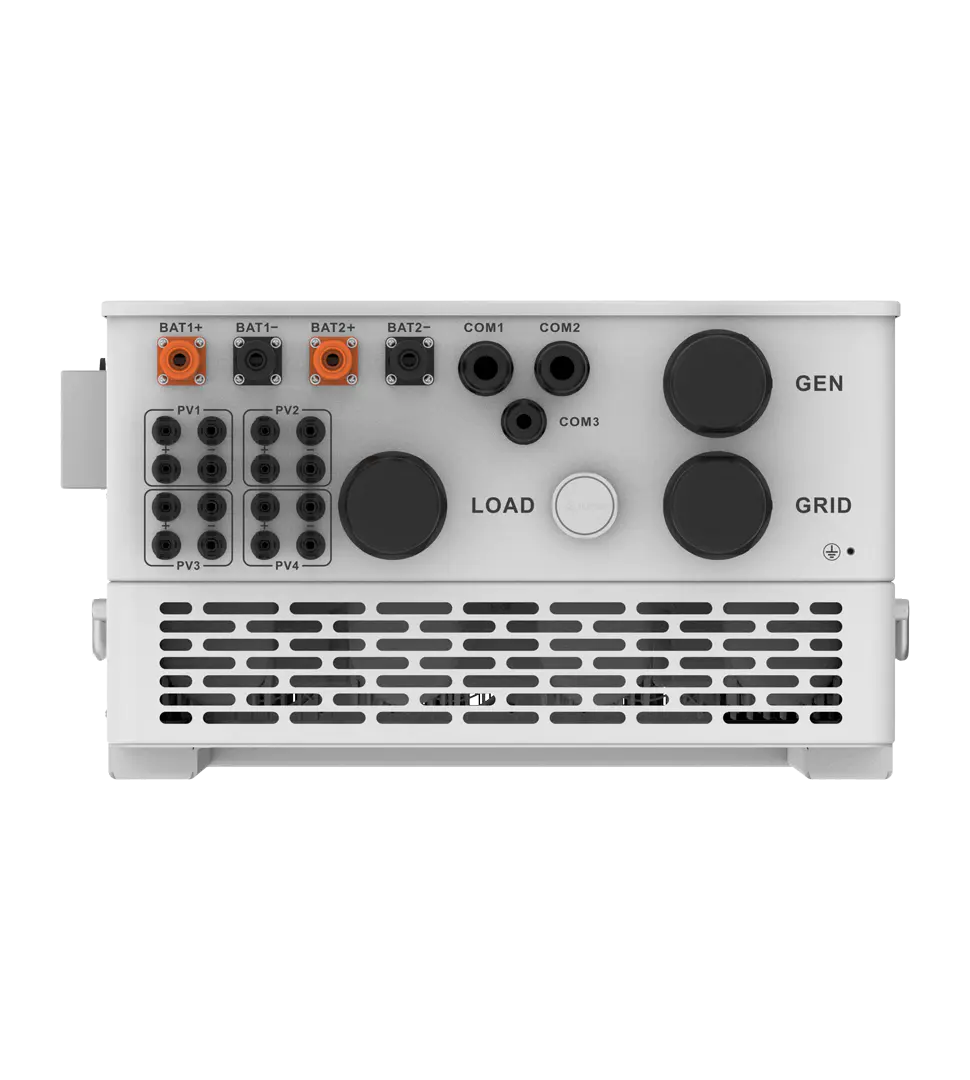

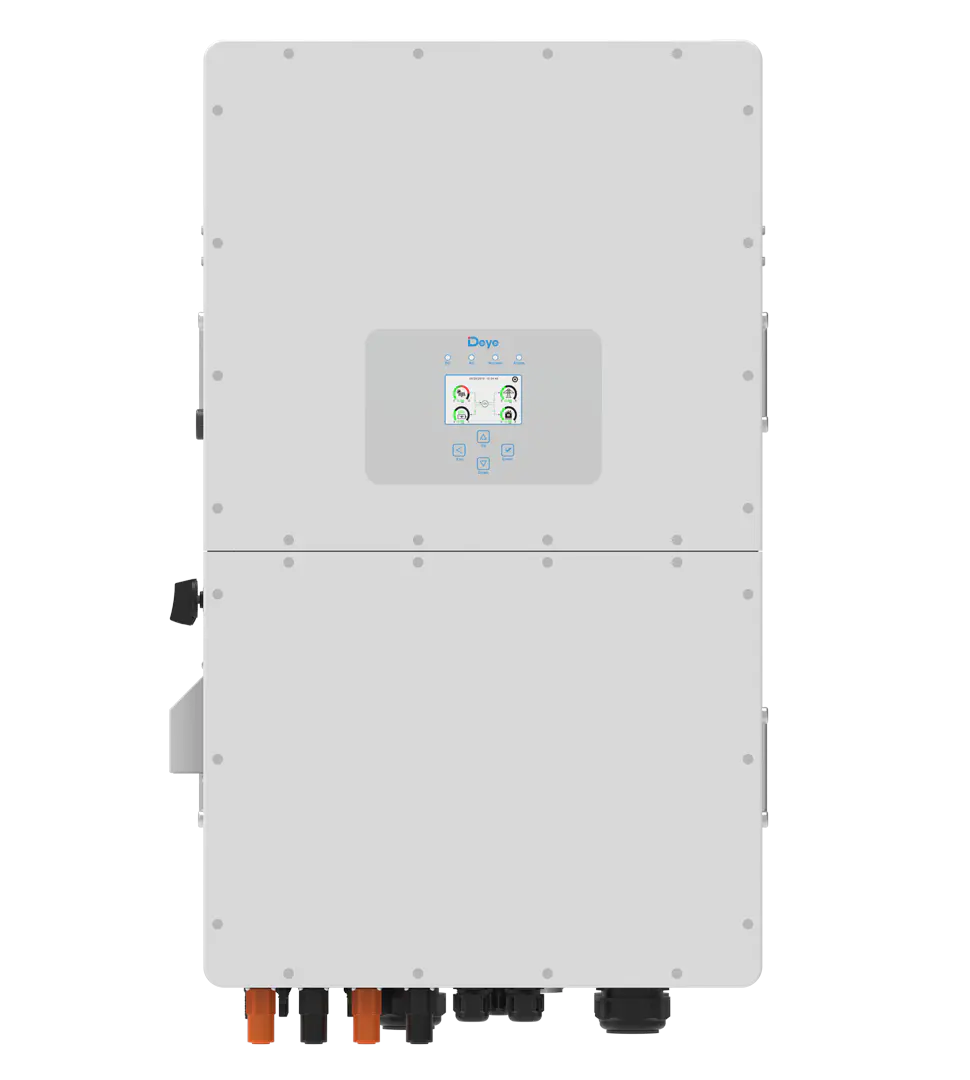

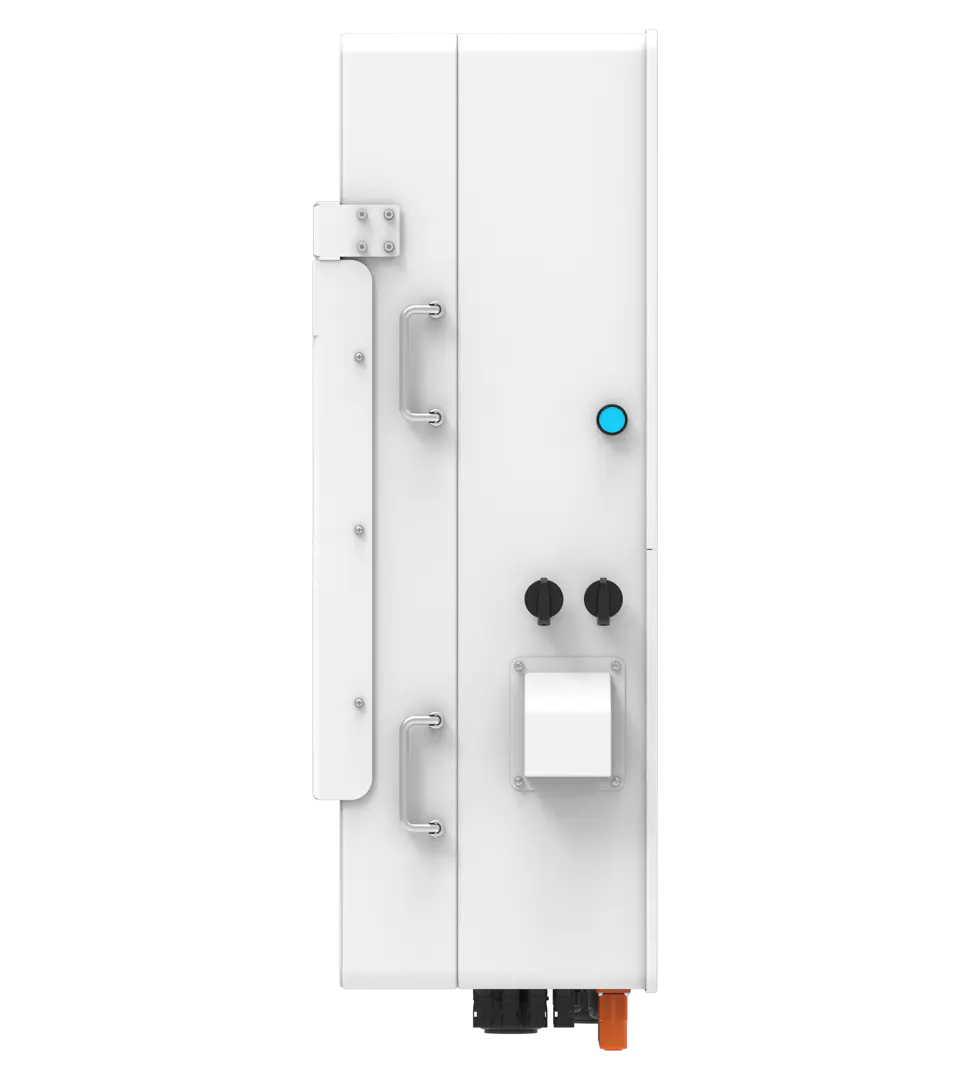

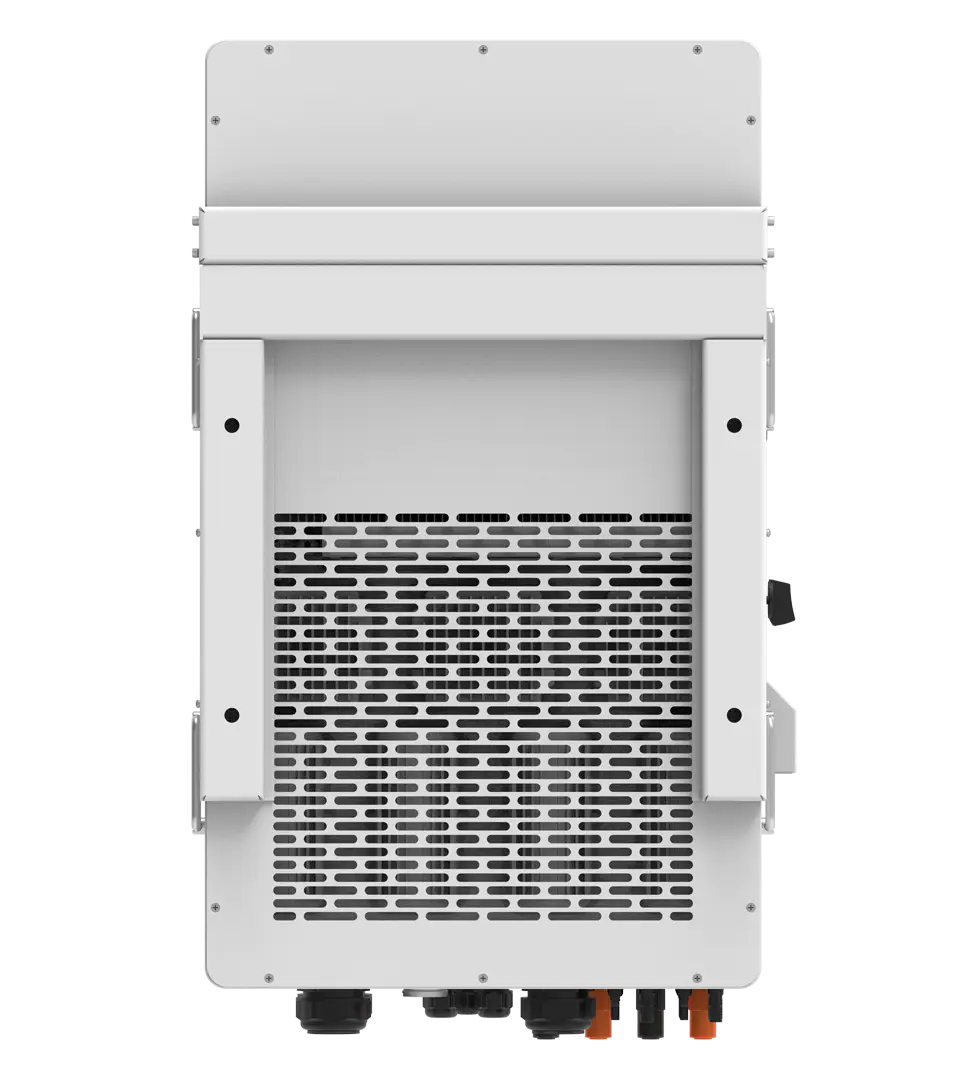

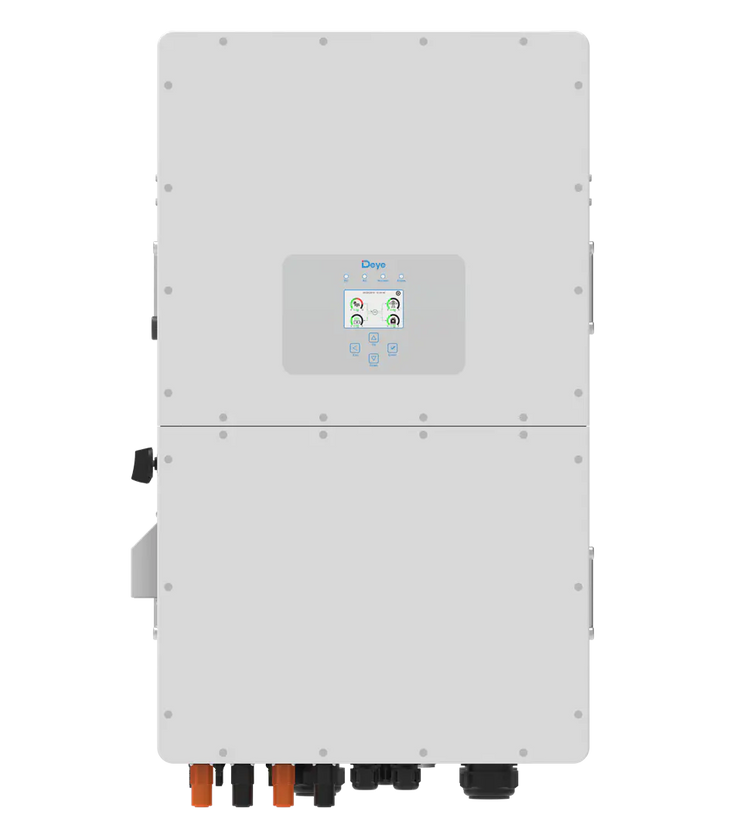

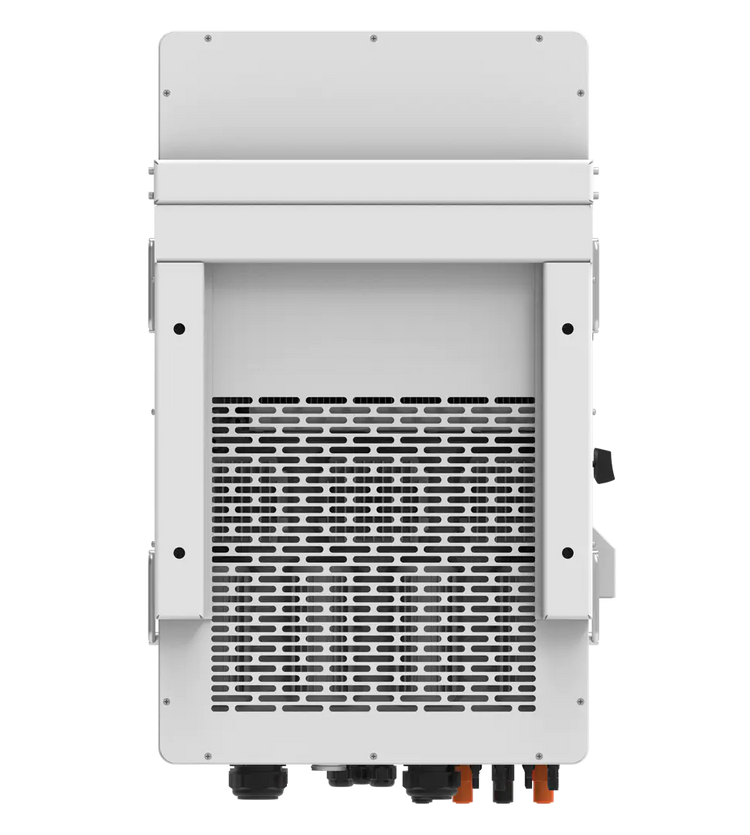

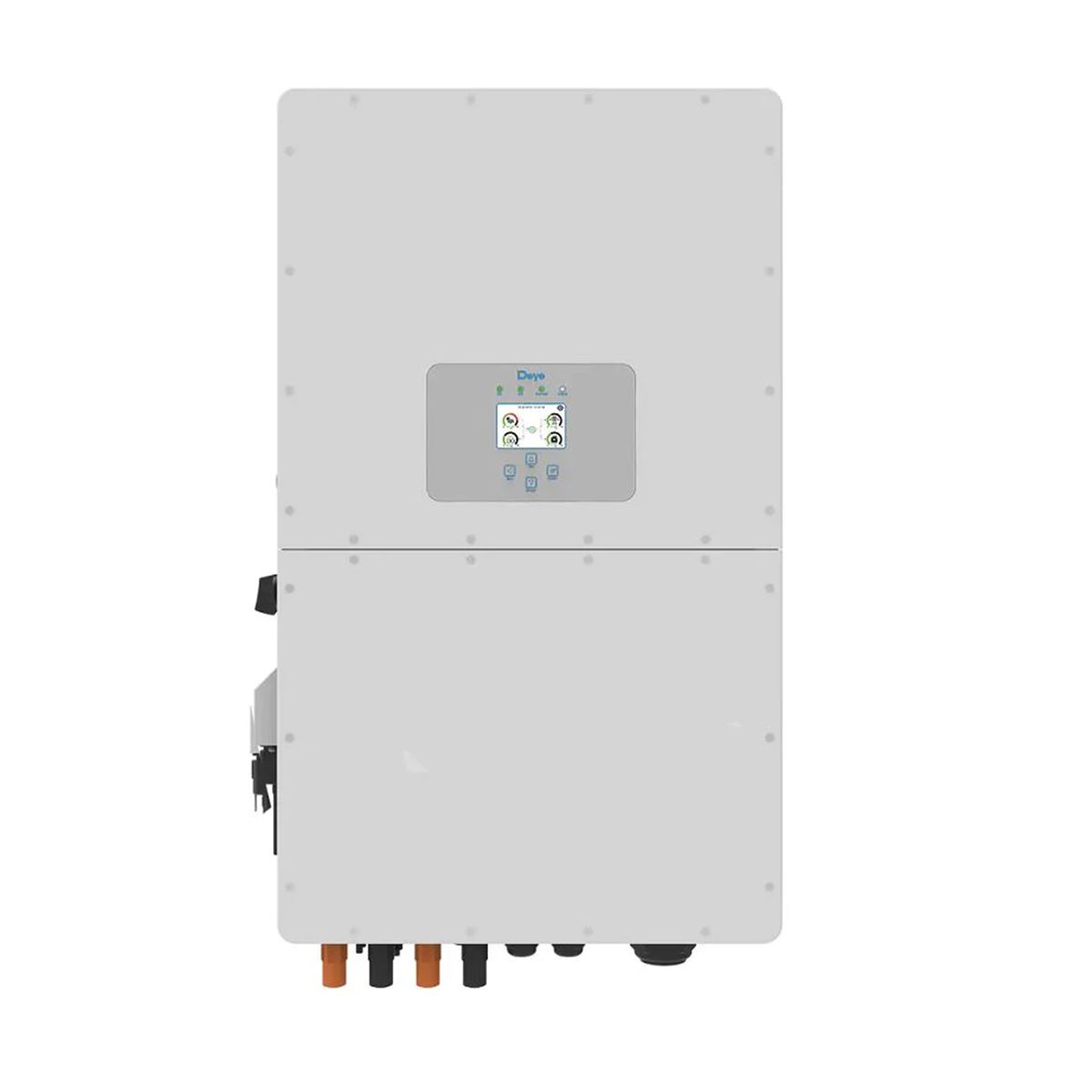

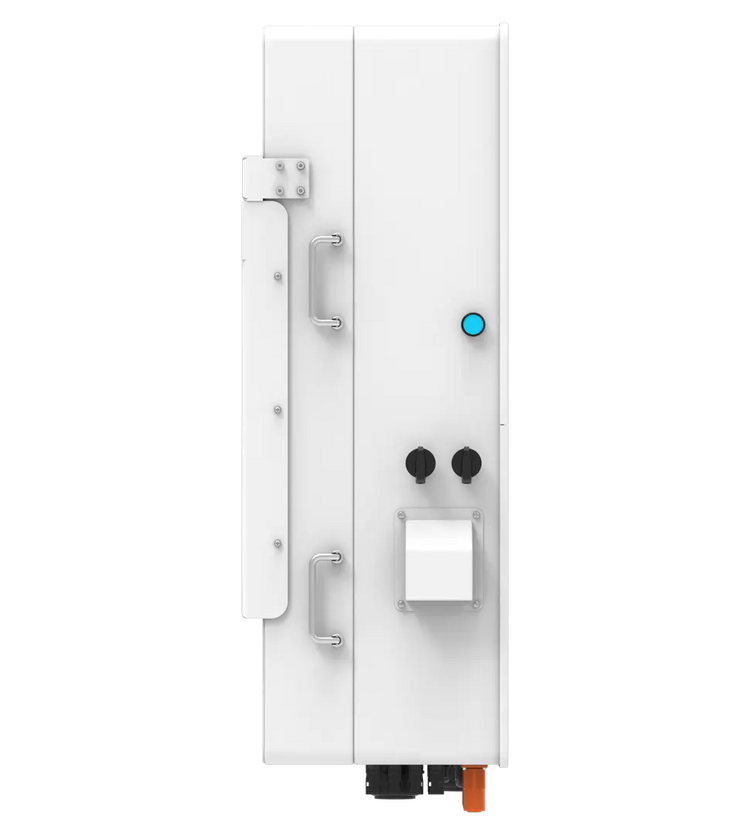

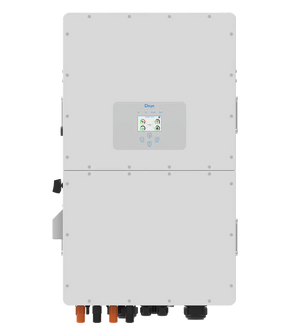

Deye 50KW 3 Phase Hybrid Inverter

Higher yields / Safe & Reliable / Smart / User-friendly

The Deye Three Phase Hybrid Inverter series is designed for robust performance and efficient energy management in both residential and commercial settings. With a focus on high efficiency, seamless integration, and advanced protection features, these inverters offer a versatile solution for modern energy needs.

Key Features

• High Charging/Discharging Current: Supports a maximum charging and discharging current of 100A, which ensures flexibility in managing energy storage needs.
• Energy Storage Compatibility: Capable of storing energy from diesel generators, making it suitable for regions with unstable power supply.
• Parallel Operation: Supports up to 10 units in parallel for on-grid and off-grid scenarios, providing scalable energy solutions for larger installations.
• Multiple Battery Compatibility: Supports multiple batteries in parallel, catering to higher energy storage demands.
• AC Coupling: Perfect for retrofitting existing solar systems, allowing for seamless integration without significant overhauls.
• Configurable Time Periods: Up to 6 time periods can be set for battery charging and discharging, enabling efficient energy usage tailored to specific needs.
• High Efficiency: Utilizes high voltage batteries, ensuring higher operational efficiency and more effective energy storage.
• 100% Unbalanced Output: Each phase supports 100% unbalanced output, increasing the flexibility and reliability of the power supply.

Operational Features

The Deye inverters boast high efficiency ratings and advanced protection features:

• Efficiency Ratings:
  • Max Efficiency: 97.6%
  • European Efficiency: 97%
  • MPPT Efficiency: >99%
• Comprehensive Protection:
  • Integrated DC polarity reverse connection protection
  • AC output overcurrent/overvoltage/short circuit protection
  • Ground fault current monitoring
  • Surge Protection (Type II for both DC and AC)
  • Island protection and thermal protection

Environmental and Safety Compliance

• Operating Temperature Range: -40 to +60°C (with derating above 45°C)
• Ingress Protection Rating: IP65
• Noise Level: ≤65 dB
• Permissible Altitude: Up to 2000 meters
• Cooling Mechanism: Intelligent air cooling

Physical Characteristics

• Dimensions: 527 x 894 x 294 mm (excluding connectors and brackets)
• Weight: 80 kg

Communication and Monitoring

• Monitor Modes: GPRS, WIFI, Bluetooth, 4G, LAN (optional)
• Communication Interfaces: RS485, RS232, CAN

Compliance and Warranty

• Grid Regulations: Compliant with IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105.
• Safety Standards: Meets IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2.
• Warranty: Standard 5 years, extendable to 10 years depending on installation site.
