Important Product Requirements for Synapse 5.0k+ Inverter:

Battery Requirement: The Synapse 5.0k+ inverter requires a compatible battery system to be installed for proper operation. The unit cannot function without a battery connected.

Installation Requirements:

• This product must be installed by a certified PV installer who can provide a Certificate of Compliance
• Installation must adhere to all applicable regulations and safety standards
• Professional installation ensures safe and accurate system performance

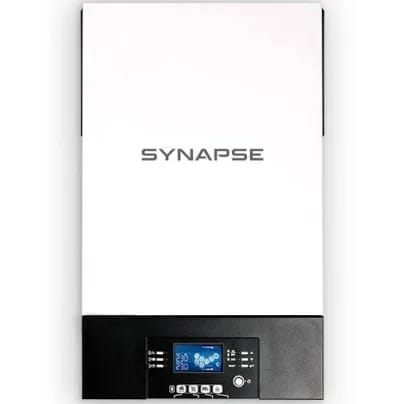

The Synapse 5.0K+ Off-Grid Inverter is engineered for high-performance off-grid solar energy systems. This robust 48VDC inverter delivers 5000W of continuous power output, ensuring reliable and efficient energy conversion for your off-grid requirements. Featuring an impressive 80A MPPT (Maximum Power Point Tracking), it optimally harvests solar energy to maximise your system's performance. Ideal for remote locations, backup power, or standalone solar setups, this inverter provides stable and clean power for various applications, including residential, commercial, and agricultural uses.

Benefits:

~ Reliable Off-Grid Power: Supplies 5000W of continuous power, suitable for running multiple appliances and systems independently from the grid.

~ Efficient Solar Energy Utilisation:Advanced 80A MPPT technology enhances solar energy capture, improving overall system efficiency.

~ Versatile Applications: Perfect for remote locations, emergency backup, and energy independence.

Main Features:
~ Power Output: 5000W continuous power capacity.

~ DC Voltage: Operates at 48VDC.

~ MPPT Efficiency: 80A MPPT for optimal solar energy conversion.

~ Off-Grid Capability: Designed for standalone solar energy systems, ideal for remote and backup power solutions.

Comes equipped with a unique operating system and a built-in MPPT for solar applications. In addition, there is an optional AC input that will allow a battery bank to be charged by a grid or generator connection.

These units are not capable of feeding back into the grid. Perfect for a start-up system to reduce the effects of load shedding. Another option is by reducing electricity bill when adding solar panels.

Pure Sine wave inverter

Battery equalization function to optimize battery performance

Technical Specifications:

- Rated Power: 5000W

- Voltage: 230V AC

- Surge Power: 5000VA

- Efficiency: 90-93%

- Transfer Time: 20ms for home appliances

- Waveform: Pure sine wave

Battery:

- Battery Voltage: 48V DC

- Floating charge Voltage: 5V DC

- Overcharge Protection: 66V DC

Solar Charger & AC Charger:

- Max PV Array Power: 4000W

- Max PV Array VOC: 145V DC

- MPPT Range @ Operating Voltage: 60 ~ 115V DC

- Max Solar Charger Current: 80A

- Max AC Charger: 60A

Physical:

- Dimensions(D x W x H): 100 x 300 x 440mm

- Weight: 13.5kgs

- Communication Interface: USB / RS232 / RS485 / Bluetooth / Dry-contact

Environment:

- 5% to 95% Relative Humidity (Non-condensing)

- Operating temperature:-10 C to 55 C

- Storage Temperature: -15 C to 60 C

What's in the box
1 x Synapse 5.0K+ Offgrid Inverter 5kW 48V DC, 4000W MPPT
1 x User Manual
