Description

Dyness PowerRack HV4 Battery HV51100:

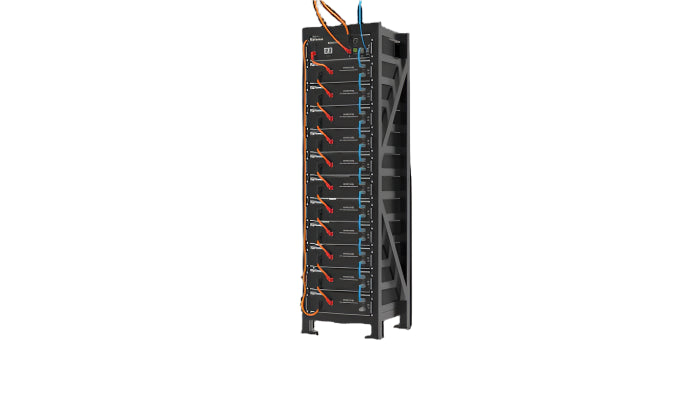

PowerRack HV4 series features a rack-mount structure design that is ideal for medium-sized industrial and commercial applications.  Its supports up to 12 cluster of parallel machines with a maximum expansion capacityof 921kWh. This effectively enhances PV consumption, provides backup power or peak shifting to ensure the safe and stable operation of the system.

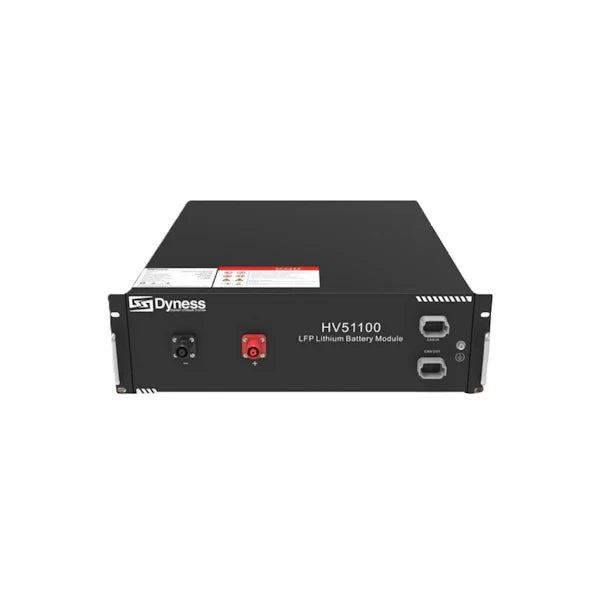

Model: HV51100

Battery Type: LifePO*

Nominal Battery Energy: 5.12kWh

Nominal Capacity: 100Ah

Nominal Voltage: 51.2V

Net weight: 43.5Kg

Dimension(W/D/H):  481/535/140mm

Charging Temp. Range:  0-55°C

Discharging Temp. Range: -20-55°

Communication:  CAN

Cycle Life*:  6000 Cycles

Protection Level:  IP20

Expansion:  Up to 15 Units in series

Compatible Inversters:  GoodWe/Solis/SAJ/Sinexcel/Hoymiles/Growatt/Ecatus/Sermatec/ATESS/Sunways etc.

Certification& Safety Standard:  UN38.3/CE-EMC

Rack Type:  PowerRack HV4

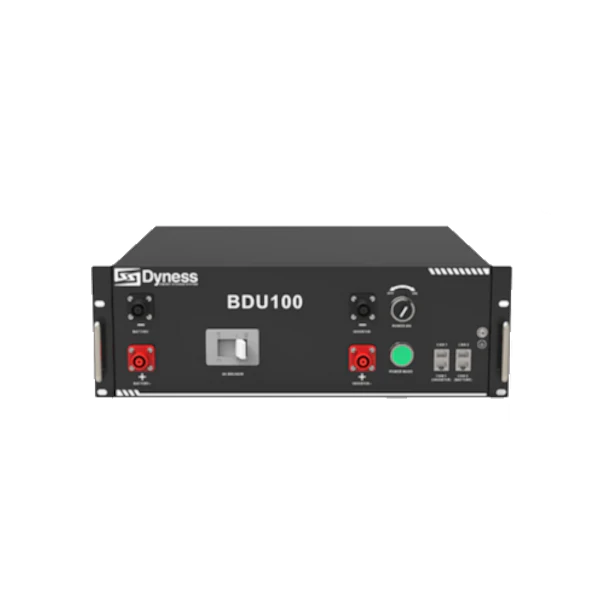

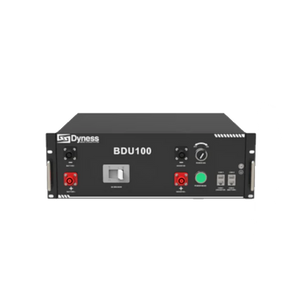

Rack system Control unit Type:  BDU100
Battery Module Type:  HV51100
Battery Module Quantity:  4-7 units
Nominal Battery Energy:   5.12kWhxn(n=4-7)
Nominal Capacity:  100Ah
Nominal Voltage:  51.2Vxn(n=4-7)
Nominal Power Output:  3.07kWxn(n=4-7)
Max.Power Output:  5.12kWxn(n=4-7)
Recommend Cagrging Current:  50A
Recommend Discharging Current:  50A
Net Weight:  62+12+43.5kgxn(n=4-7)
Dimensions(W/D/H):  601/610/1392mm
Module Quantity and configuration:  4-7 Units in Series

Battery Module Quantity:  8-11 units
Nominal Battery Energy:   5.12kWhxn(n=8-11)
Nominal Capacity:  100Ah
Nominal Voltage:  51.2Vxn(n=8-11)
Nominal Power Output:  3.07kWxn(n=8-11)
Max.Power Output:  5.12kWxn(n=8-11)
Recommend Cagrging Current:  50A
Recommend Discharging Current:  50A
Net Weight:  62+12+43.5kgxn(n=8-11)
Dimensions(W/D/H):  601/610/2012mm
Module Quantity and configuration:  8-11 Units in Series

Battery Module Quantity:  12-15 units
Nominal Battery Energy:   5.12kWhxn(n=12-15)
Nominal Capacity:  100Ah
Nominal Voltage:  51.2Vxn(n=12-15)
Nominal Power Output:  3.07kWxn(n=12-15)
Max.Power Output:  5.12kWxn(n=12-15)
Recommend Cagrging Current:  50A
Recommend Discharging Current:  50A
Net Weight:  62+12+43.5kgxn(n=12-15)
Dimensions(W/D/H):  601/610/1392mm*2 (Two clusters)
Module Quantity and configuration:  12-15 Units in Series
Description

Dyness PowerRack HV4 Battery HV51100:

PowerRack HV4 series features a rack-mount structure design that is ideal for medium-sized industrial and commercial applications.  Its supports up to 12 cluster of parallel machines with a maximum expansion capacityof 921kWh. This effectively enhances PV consumption, provides backup power or peak shifting to ensure the safe and stable operation of the system.

Model: HV51100

Battery Type: LifePO*

Nominal Battery Energy: 5.12kWh

Nominal Capacity: 100Ah

Nominal Voltage: 51.2V

Net weight: 43.5Kg

Dimension(W/D/H):  481/535/140mm

Charging Temp. Range:  0-55°C

Discharging Temp. Range: -20-55°

Communication:  CAN

Cycle Life*:  6000 Cycles

Protection Level:  IP20

Expansion:  Up to 15 Units in series

Compatible Inversters:  GoodWe/Solis/SAJ/Sinexcel/Hoymiles/Growatt/Ecatus/Sermatec/ATESS/Sunways etc.

Certification& Safety Standard:  UN38.3/CE-EMC

Rack Type:  PowerRack HV4
Rack system Control unit Type:  BDU100
Battery Module Type:  HV51100
Battery Module Quantity:  4-7 units
Nominal Battery Energy:   5.12kWhxn(n=4-7)
Nominal Capacity:  100Ah
Nominal Voltage:  51.2Vxn(n=4-7)
Nominal Power Output:  3.07kWxn(n=4-7)
Max.Power Output:  5.12kWxn(n=4-7)
Recommend Cagrging Current:  50A
Recommend Discharging Current:  50A
Net Weight:  62+12+43.5kgxn(n=4-7)
Dimensions(W/D/H):  601/610/1392mm
Module Quantity and configuration:  4-7 Units in Series

Battery Module Quantity:  8-11 units
Nominal Battery Energy:   5.12kWhxn(n=8-11)
Nominal Capacity:  100Ah
Nominal Voltage:  51.2Vxn(n=8-11)
Nominal Power Output:  3.07kWxn(n=8-11)
Max.Power Output:  5.12kWxn(n=8-11)
Recommend Cagrging Current:  50A
Recommend Discharging Current:  50A
Net Weight:  62+12+43.5kgxn(n=8-11)
Dimensions(W/D/H):  601/610/2012mm
Module Quantity and configuration:  8-11 Units in Series

Battery Module Quantity:  12-15 units
Nominal Battery Energy:   5.12kWhxn(n=12-15)
Nominal Capacity:  100Ah
Nominal Voltage:  51.2Vxn(n=12-15)
Nominal Power Output:  3.07kWxn(n=12-15)
Max.Power Output:  5.12kWxn(n=12-15)
Recommend Cagrging Current:  50A
Recommend Discharging Current:  50A
Net Weight:  62+12+43.5kgxn(n=12-15)
Dimensions(W/D/H):  601/610/1392mm*2 (Two clusters)
Module Quantity and configuration:  12-15 Units in Series
