Description
  • Model Lynks 8kW
    Battery Input Parameters
    Supported Battery Type Li-Ion or Lead-acid
    Nominal Battery Voltage 48V
    Battery Input Voltage Range 40~60V
    Max. Charge Voltage ≤60V (Configurable)
    Max. Charge Current 150A (Configurable)
    Max. Discharge Current 180A (Configurable)
    Battery Capacity (Recommended) 100~2000Ah
    Charge for Li-Ion Battery Pack Communicating with BMS of Battery Pack
    PV String Input Parameters
    Max. DC Input Power 10000W
    DC Input Voltage 500V
    MPPT Voltage Range 120-450V
    Start-up Voltage 150V
    Max. Input Current 23A x 2 = 46A (2 MPPT Channels)
    AC Output Parameters (Back-Up)(Feed to Essential Load)
    Max. Output Power 8000W
    Max. Output Apparent Power 8000VA
    Peak Output Apparent Power 16000VA
    Max. Output Current 36A
    Nominal Output Voltage 220/230/240Vac Single-Phase (Configurable)
    Nominal Output Frequency 50/60Hz (+/-0.2%) (Configurable)
    Max. Bypass Current 42A
    Shift Time (Bypass and Inverter) 10ms
    Output THDv (Resistor Load) <3%
    AC Input Parameter (On-Grid)(Bypass to Essential Load & Charge the Battery/Feed to Home Load)
    Max. Input Power 8000W
    Max. Output Power (Feed to Home Load) 8000W
    Max. Apparent Input Power 8000VA
    Max. Apparent Output Power 8000VA
    Nominal Input/Output Voltage 220/230/240Vac (Auto Adjusted to Fit Home Grid)
    Nominal Input/Output Frequency 50/60Hz (Auto Adjusted to Fit Home Grid)
    Max. Bypass Current 42A
    Shift Time (Bypass and Inverter) 10ms
    Efficiency
    Max. Efficiency 97.6%
    Max. Battery to Load Efficiency 94.0%
    Europe Efficiency 97.6%
    MPPT Efficiency 99.9%
Description
  • Model Lynks 8kW
    Battery Input Parameters
    Supported Battery Type Li-Ion or Lead-acid
    Nominal Battery Voltage 48V
    Battery Input Voltage Range 40~60V
    Max. Charge Voltage ≤60V (Configurable)
    Max. Charge Current 150A (Configurable)
    Max. Discharge Current 180A (Configurable)
    Battery Capacity (Recommended) 100~2000Ah
    Charge for Li-Ion Battery Pack Communicating with BMS of Battery Pack
    PV String Input Parameters
    Max. DC Input Power 10000W
    DC Input Voltage 500V
    MPPT Voltage Range 120-450V
    Start-up Voltage 150V
    Max. Input Current 23A x 2 = 46A (2 MPPT Channels)
    AC Output Parameters (Back-Up)(Feed to Essential Load)
    Max. Output Power 8000W
    Max. Output Apparent Power 8000VA
    Peak Output Apparent Power 16000VA
    Max. Output Current 36A
    Nominal Output Voltage 220/230/240Vac Single-Phase (Configurable)
    Nominal Output Frequency 50/60Hz (+/-0.2%) (Configurable)
    Max. Bypass Current 42A
    Shift Time (Bypass and Inverter) 10ms
    Output THDv (Resistor Load) <3%
    AC Input Parameter (On-Grid)(Bypass to Essential Load & Charge the Battery/Feed to Home Load)
    Max. Input Power 8000W
    Max. Output Power (Feed to Home Load) 8000W
    Max. Apparent Input Power 8000VA
    Max. Apparent Output Power 8000VA
    Nominal Input/Output Voltage 220/230/240Vac (Auto Adjusted to Fit Home Grid)
    Nominal Input/Output Frequency 50/60Hz (Auto Adjusted to Fit Home Grid)
    Max. Bypass Current 42A
    Shift Time (Bypass and Inverter) 10ms
    Efficiency
    Max. Efficiency 97.6%
    Max. Battery to Load Efficiency 94.0%
    Europe Efficiency 97.6%
    MPPT Efficiency 99.9%
SunSynk Inverter by Sunsynk

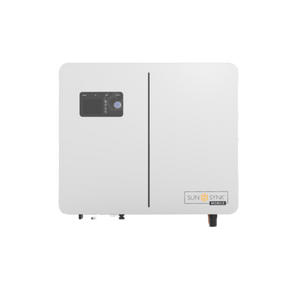

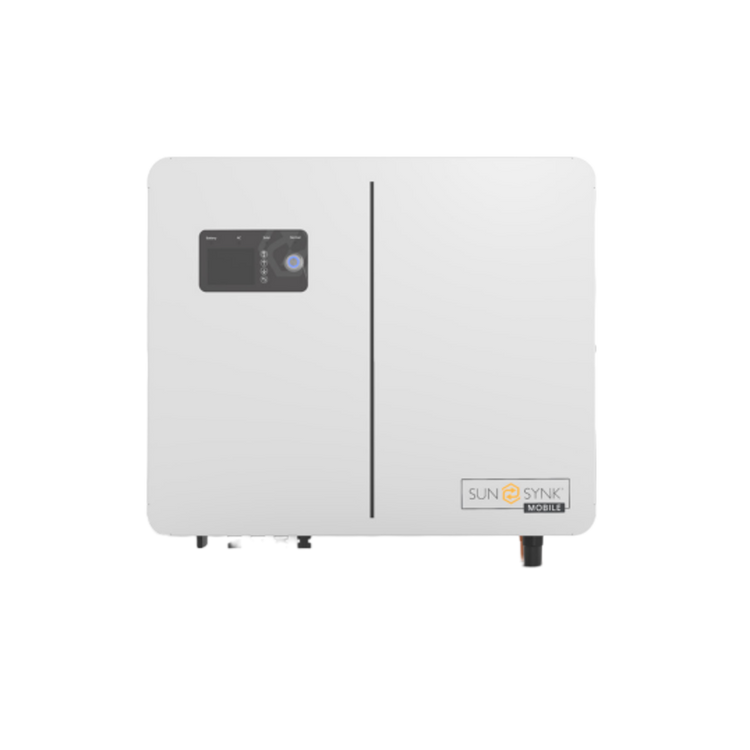

8kw Sunsynk Lynks Inverter

R 22,900.00
R 22,900.00
Note :
Registered installers and distributors qualify for exclusive pricing. Contact us for more details...  Read more

Payment Instructions.


FNB
Account name: World Of Sun and Windpower
Account Number - 62819010331
Type - Cheque Account
Branch code - 250655
NB: If you are using different bank ,please make sure that you make an instant payment.
There will be no shipping until the payment has reflected into our account.
Please use your order number as a reference.
If you inquire delivery for your purchases contact us on 0692993817/ 0735684097 to measure distance and amount of your delivery.Thank You
Notification The client will make a EFT payment then send proof of payment to one of these 2 Whatsapp numbers :0692993817/ 0735684097 then they'll be issued an invoice.
NB: ALWAYS REMEMBER TO MAKE INSTANT PAYMENT WHEN PAYING WITH A BANK
