Description

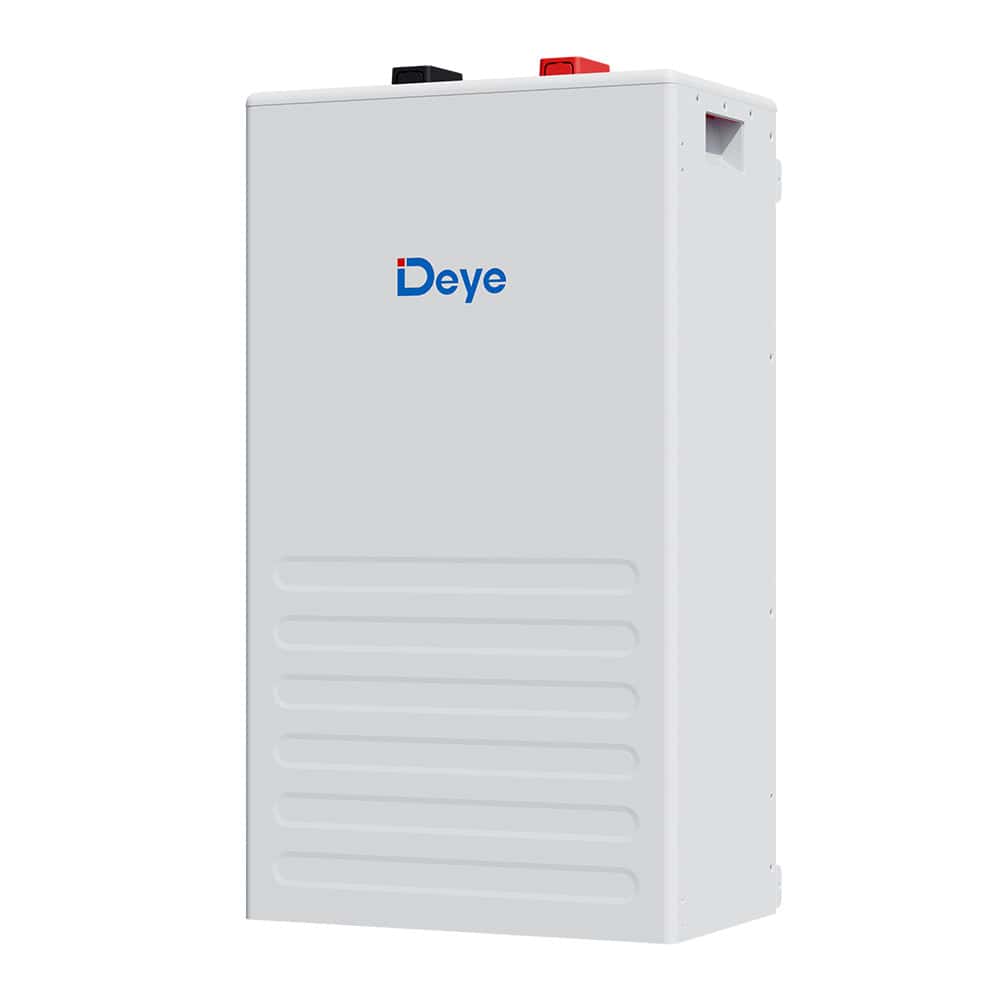

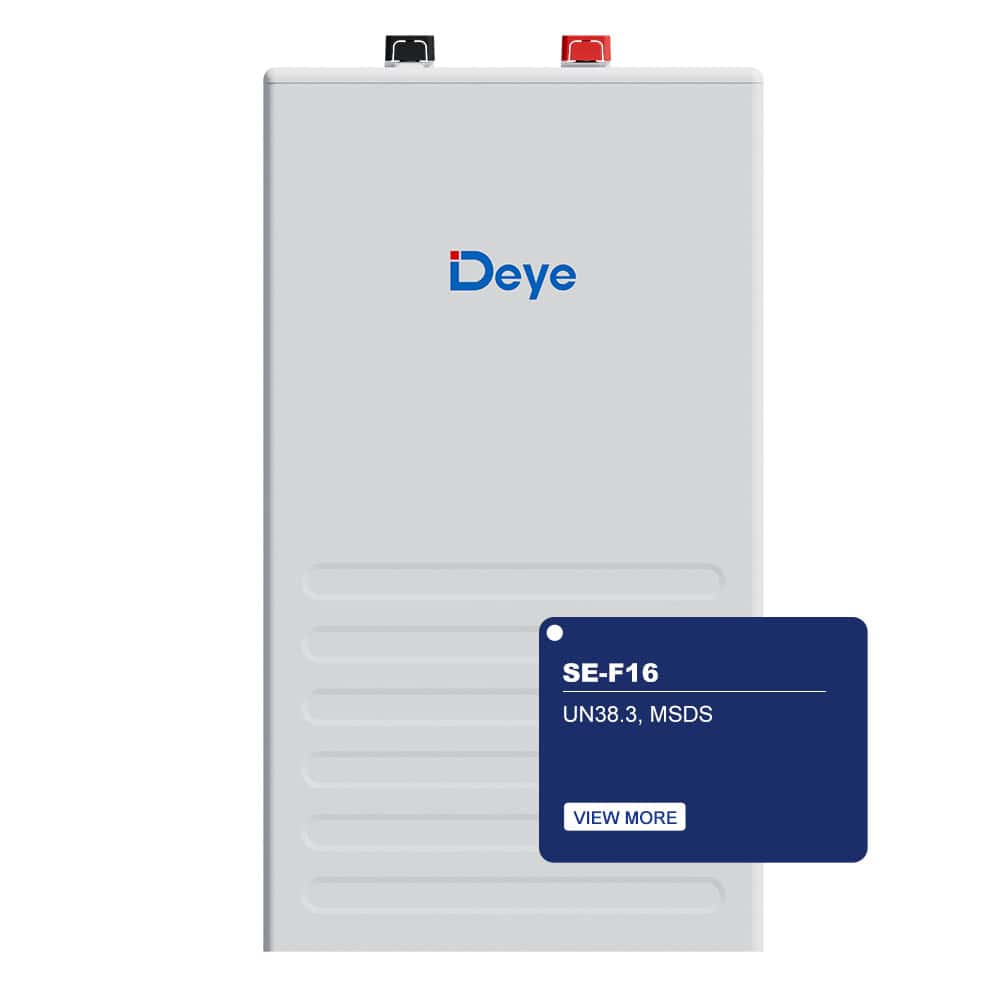

Deye 16Kw Lithium Battery SE-F16

  • High Capacity: 16 kWh nominal energy & 314 Ah capacity with LiFePO₄ chemistry
  • Scalable Power: Expandable up to 32 units in parallel for increased capacity
  • Superior Durability: Over 6000 cycle life with 90% recommended DoD
  • Advanced Protection: Integrated BMS with active fuse for enhanced safety
  • Robust Performance: Reliable operation from -20°C to 55°C
  • Easy Monitoring: Local battery and remote ESS monitoring via app/interfaces
  • Flexible Installation: Wall, floor, or stack-mounted options

The SE – F16 is a standout energy storage solution from Deye, engineered to meet diverse energy needs with excellence.

Parameter Value
Model SE-F16
Battery Chemistry LiFePO₄
Nominal Capacity 314 Ah
Nominal Energy 16 kWh
Nominal Voltage 51.2 V
Operating Voltage 44.8 V – 57.6 V
Max. Cont. Charge Current 160 A
Max. Cont. Discharge Current 230 A
Peak Discharge Current 280 A (10 sec)
Dimensions (W×H×D) 400 × 708 × 233 mm (Without hanging board)
Weight Approximate 109 kg
Recommended DoD 90%
Cycle Life >6000 cycles (25°C±2°C, 70%EOL)
IP Rating IP21
Operating Temperature Charge: 0~55°C / Discharge: -20°C~55°C
Communication CAN2.0, RS485, Bluetooth+APP
Scalability Max. 32 units in parallel
Warranty 5 years / 10 years (extended)
Certifications UN38.3, MSDS

Key Features & Benefits:

  • Comprehensive Protection: Equipped with an advanced Battery Management System (BMS) and active fuse, it ensures the safety and stability of the energy storage process, guarding against potential risks.
  • Superior Performance: Supports a maximum 1C charge and 1.2C discharge. Featuring GaN MOSFETs, it achieves a 50% reduction in energy loss and demonstrates strong resistance to high temperatures, ensuring efficient operation even in tough conditions.
  • Optimized Energy Density: The integrated PACK design cuts down line loss significantly, boosting energy density and making the most of every unit of energy stored.
  • Flexible Expansion: Allows for parallel connection of up to 32 units, enabling users to scale up the energy storage capacity as their requirements grow.
  • Easy Maintenance: Comes with auto – networking functionality. It offers a local monitoring mode for individual batteries and a remote monitoring mode for the entire Energy Storage System (ESS), simplifying upkeep and management.
  • Reliable Durability: Operates reliably within a temperature range of – 20°C to 55°C relying on natural cooling, ensuring consistent performance in various environmental conditions.
Description

Deye 16Kw Lithium Battery SE-F16

  • High Capacity: 16 kWh nominal energy & 314 Ah capacity with LiFePO₄ chemistry
  • Scalable Power: Expandable up to 32 units in parallel for increased capacity
  • Superior Durability: Over 6000 cycle life with 90% recommended DoD
  • Advanced Protection: Integrated BMS with active fuse for enhanced safety
  • Robust Performance: Reliable operation from -20°C to 55°C
  • Easy Monitoring: Local battery and remote ESS monitoring via app/interfaces
  • Flexible Installation: Wall, floor, or stack-mounted options

The SE – F16 is a standout energy storage solution from Deye, engineered to meet diverse energy needs with excellence.

Parameter Value
Model SE-F16
Battery Chemistry LiFePO₄
Nominal Capacity 314 Ah
Nominal Energy 16 kWh
Nominal Voltage 51.2 V
Operating Voltage 44.8 V – 57.6 V
Max. Cont. Charge Current 160 A
Max. Cont. Discharge Current 230 A
Peak Discharge Current 280 A (10 sec)
Dimensions (W×H×D) 400 × 708 × 233 mm (Without hanging board)
Weight Approximate 109 kg
Recommended DoD 90%
Cycle Life >6000 cycles (25°C±2°C, 70%EOL)
IP Rating IP21
Operating Temperature Charge: 0~55°C / Discharge: -20°C~55°C
Communication CAN2.0, RS485, Bluetooth+APP
Scalability Max. 32 units in parallel
Warranty 5 years / 10 years (extended)
Certifications UN38.3, MSDS

Key Features & Benefits:

  • Comprehensive Protection: Equipped with an advanced Battery Management System (BMS) and active fuse, it ensures the safety and stability of the energy storage process, guarding against potential risks.
  • Superior Performance: Supports a maximum 1C charge and 1.2C discharge. Featuring GaN MOSFETs, it achieves a 50% reduction in energy loss and demonstrates strong resistance to high temperatures, ensuring efficient operation even in tough conditions.
  • Optimized Energy Density: The integrated PACK design cuts down line loss significantly, boosting energy density and making the most of every unit of energy stored.
  • Flexible Expansion: Allows for parallel connection of up to 32 units, enabling users to scale up the energy storage capacity as their requirements grow.
  • Easy Maintenance: Comes with auto – networking functionality. It offers a local monitoring mode for individual batteries and a remote monitoring mode for the entire Energy Storage System (ESS), simplifying upkeep and management.
  • Reliable Durability: Operates reliably within a temperature range of – 20°C to 55°C relying on natural cooling, ensuring consistent performance in various environmental conditions.
Deye' by Deye

Deye 16kWh Lithium Battery SE-F16

R 30,900.00
R 30,900.00
