Description

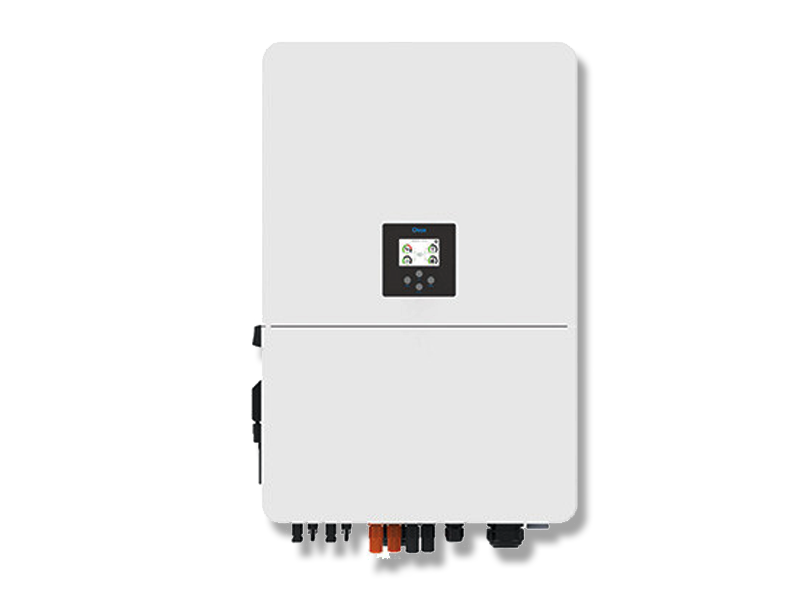

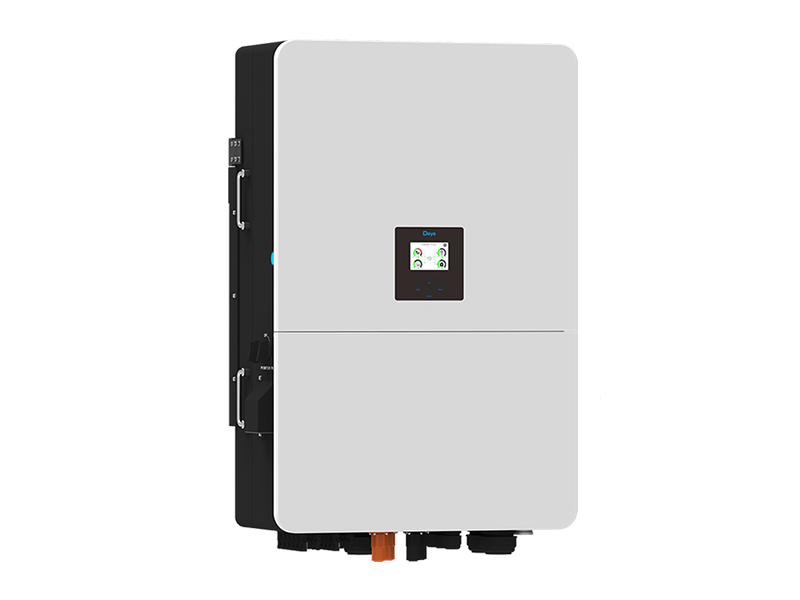

Deye 80kW Hybrid High-Voltage 3-Phase Inverter (SUN-80K-SG02HP3-EU-EM6)



The Deye SUN-80K-SG02HP3-EU-EM6 is a high-performance 80kW 3-phase hybrid inverter engineered for commercial and industrial applications. Designed to work with high-voltage lithium-ion battery systems (160–1000V), this inverter allows seamless integration of solar energy, battery storage, and generator input, providing unmatched flexibility for energy independence.

With support for up to 10 units in parallel, 100% unbalanced 3-phase output, and advanced AC-coupling for retrofit installations, the SUN-80K is ideal for large-scale applications requiring both power and adaptability.

Key Features:

  • 🔋 High-Voltage Battery Support (160–1000V)

  • ⚡ Max. Discharge/Charge Current: 160A

  • 🔁 AC Coupling for Existing Systems

  • 🔌 10 Units Parallel Operation (On-grid/Off-grid)

  • 📈 Max. PV Input Power: 160,000W

  • ☀️ 6 MPPTs with 12 Strings for Optimal Harvesting

  • 🌀 Intelligent Air Cooling

  • 🔧 Pre-configured for Generator Compatibility

  • 🌍 Integrated Monitoring: RS485 / CAN / WiFi / GPRS / 4G (Optional)

  • 📶 Advanced BMS Communication with Lithium Batteries

  • 🏠 100% Unbalanced Load Output per Phase

  • 🛡️ IP65 Rated – Outdoor Ready

  • 🇿🇦 NRS097 Certified – Suitable for South African Grids


Technical Specifications:

Specification Details
Model SUN-80K-SG02HP3-EU-EM6
Rated Power 80,000W
Max. PV Input Power 160,000W
MPPTs / Strings 6 MPPTs / 12 Strings
Max. PV Input Voltage 1000V
Battery Voltage Range 160–1000V (High Voltage Li-ion)
Max. Charge/Discharge Current 160A
Grid Voltage / Frequency 230/400V (3-phase) / 50Hz or 60Hz
AC Output Current (Max) 133.4A
Efficiency Max 97.6%, Euro 97.0%, MPPT >99%
Communication Ports RS485 / RS232 / CAN / WiFi / 4G (Optional)
Operating Temp Range -40°C to +60°C (Derating >45°C)
Protection DC Reverse, Overcurrent, Arc Fault, Islanding
Dimensions (W x H x D) 606 x 927 x 314 mm
Weight 97.5 kg
Cooling Intelligent Air Cooling
Ingress Protection IP65
Certifications IEC, EN, CE, NRS097, VDE, G99, RD 140, etc.
Warranty 5/10 Years (Depending on installation site)


What’s Included:

  • 1 × Deye 80kW Hybrid 3-Phase Inverter

  • User Manual & Quick Start Guide

  • Mounting Accessories

  • Warranty Card


Ideal For:

  • Commercial & Industrial Installations

  • Large-Scale Backup Power Systems

  • Off-Grid or Hybrid Solar Systems

  • Agricultural & Utility Applications

Description

Deye 80kW Hybrid High-Voltage 3-Phase Inverter (SUN-80K-SG02HP3-EU-EM6)



The Deye SUN-80K-SG02HP3-EU-EM6 is a high-performance 80kW 3-phase hybrid inverter engineered for commercial and industrial applications. Designed to work with high-voltage lithium-ion battery systems (160–1000V), this inverter allows seamless integration of solar energy, battery storage, and generator input, providing unmatched flexibility for energy independence.

With support for up to 10 units in parallel, 100% unbalanced 3-phase output, and advanced AC-coupling for retrofit installations, the SUN-80K is ideal for large-scale applications requiring both power and adaptability.

Key Features:

  • 🔋 High-Voltage Battery Support (160–1000V)

  • ⚡ Max. Discharge/Charge Current: 160A

  • 🔁 AC Coupling for Existing Systems

  • 🔌 10 Units Parallel Operation (On-grid/Off-grid)

  • 📈 Max. PV Input Power: 160,000W

  • ☀️ 6 MPPTs with 12 Strings for Optimal Harvesting

  • 🌀 Intelligent Air Cooling

  • 🔧 Pre-configured for Generator Compatibility

  • 🌍 Integrated Monitoring: RS485 / CAN / WiFi / GPRS / 4G (Optional)

  • 📶 Advanced BMS Communication with Lithium Batteries

  • 🏠 100% Unbalanced Load Output per Phase

  • 🛡️ IP65 Rated – Outdoor Ready

  • 🇿🇦 NRS097 Certified – Suitable for South African Grids


Technical Specifications:

Specification Details
Model SUN-80K-SG02HP3-EU-EM6
Rated Power 80,000W
Max. PV Input Power 160,000W
MPPTs / Strings 6 MPPTs / 12 Strings
Max. PV Input Voltage 1000V
Battery Voltage Range 160–1000V (High Voltage Li-ion)
Max. Charge/Discharge Current 160A
Grid Voltage / Frequency 230/400V (3-phase) / 50Hz or 60Hz
AC Output Current (Max) 133.4A
Efficiency Max 97.6%, Euro 97.0%, MPPT >99%
Communication Ports RS485 / RS232 / CAN / WiFi / 4G (Optional)
Operating Temp Range -40°C to +60°C (Derating >45°C)
Protection DC Reverse, Overcurrent, Arc Fault, Islanding
Dimensions (W x H x D) 606 x 927 x 314 mm
Weight 97.5 kg
Cooling Intelligent Air Cooling
Ingress Protection IP65
Certifications IEC, EN, CE, NRS097, VDE, G99, RD 140, etc.
Warranty 5/10 Years (Depending on installation site)


What’s Included:

  • 1 × Deye 80kW Hybrid 3-Phase Inverter

  • User Manual & Quick Start Guide

  • Mounting Accessories

  • Warranty Card


Ideal For:

  • Commercial & Industrial Installations

  • Large-Scale Backup Power Systems

  • Off-Grid or Hybrid Solar Systems

  • Agricultural & Utility Applications

Deye by Deye

Deye 80kw Hybrid High-Voltage 3-Phase Inverter

R 140,000.00
R 140,000.00
Note :
Registered installers and distributors qualify for exclusive pricing. Contact us for more details...  Read more
