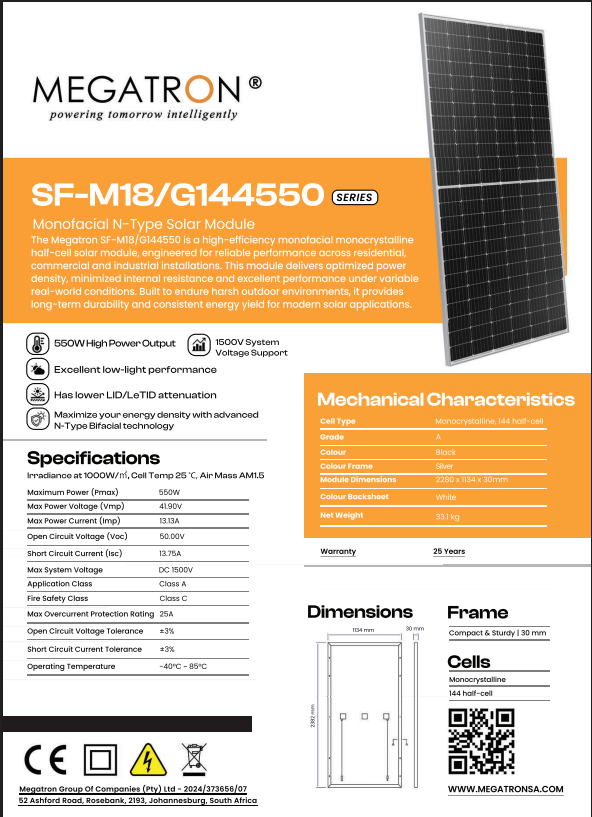

MEGATRON® 550W Monofacial N-Type Solar Module (SF-M18/G144550 Series)
Powering Tomorrow Intelligently
Maximize your energy yield with the MEGATRON® 550W Monofacial N-Type Solar Panel. Engineered with 144 Grade-A monocrystalline half-cells, this high-efficiency module is designed for residential, commercial, and industrial solar installations. Built with advanced N-Type cell technology, it delivers superior power density, minimized internal resistance, and outstanding real-world performance—even under low-light and harsh weather conditions.
Key Features & Benefits
-
550W High Power Output: High-density monocrystalline design ensures maximum energy generation per square meter.
-
Advanced N-Type Technology: Lower Light-Induced Degradation (LID) and LeTID attenuation mean your panels maintain higher performance over a longer lifespan.
-
Superior Low-Light Performance: Optimized to capture energy efficiently during early mornings, late afternoons, and overcast days.
-
Durable & Built to Last: Features a sturdy 30mm silver anodized aluminum frame, Grade-A black cells, and a white backsheet designed to withstand extreme temperatures (–40°C to +85°C).
-
High System Voltage Support: Certified for up to DC 1500V systems, allowing for longer strings and reduced BOS (Balance of System) costs.
-
25-Year Warranty: Backed by a comprehensive 25-year manufacturer warranty for long-term peace of mind.
Technical Specifications
| Parameter | Value |
| Model | SF-M18/G144550 Series |
| Maximum Power Output ($P_{max}$) | 550W |
| Max Power Voltage ($V_{mp}$) | 41.90V |
| Max Power Current ($I_{mp}$) | 13.13A |
| Open Circuit Voltage ($V_{oc}$) | 50.00V |
| Short Circuit Current ($I_{sc}$) | 13.75A |
| Cell Type | Monocrystalline (144 Half-Cells, Grade A) |
| Max System Voltage | DC 1500V |
| Max Overcurrent Protection Rating | 25A |
| Operating Temperature | -40°C to +85°C |
| Application / Fire Class | Class A / Class C |
Mechanical & Physical Characteristics
| Attribute | Specification |
| Dimensions | 2280 mm × 1134 mm × 30 mm |
| Net Weight | 33.1 kg |
| Cell Layout | Black Monocrystalline Cells |
| Frame | Silver Anodized Aluminum (30 mm) |
| Backsheet | White |
| Warranty | 25 Years |
MEGATRON® 550W Monofacial N-Type Solar Module (SF-M18/G144550 Series)
Powering Tomorrow Intelligently
Maximize your energy yield with the MEGATRON® 550W Monofacial N-Type Solar Panel. Engineered with 144 Grade-A monocrystalline half-cells, this high-efficiency module is designed for residential, commercial, and industrial solar installations. Built with advanced N-Type cell technology, it delivers superior power density, minimized internal resistance, and outstanding real-world performance—even under low-light and harsh weather conditions.
Key Features & Benefits
-
550W High Power Output: High-density monocrystalline design ensures maximum energy generation per square meter.
-
Advanced N-Type Technology: Lower Light-Induced Degradation (LID) and LeTID attenuation mean your panels maintain higher performance over a longer lifespan.
-
Superior Low-Light Performance: Optimized to capture energy efficiently during early mornings, late afternoons, and overcast days.
-
Durable & Built to Last: Features a sturdy 30mm silver anodized aluminum frame, Grade-A black cells, and a white backsheet designed to withstand extreme temperatures (–40°C to +85°C).
-
High System Voltage Support: Certified for up to DC 1500V systems, allowing for longer strings and reduced BOS (Balance of System) costs.
-
25-Year Warranty: Backed by a comprehensive 25-year manufacturer warranty for long-term peace of mind.
Technical Specifications
| Parameter | Value |
| Model | SF-M18/G144550 Series |
| Maximum Power Output ($P_{max}$) | 550W |
| Max Power Voltage ($V_{mp}$) | 41.90V |
| Max Power Current ($I_{mp}$) | 13.13A |
| Open Circuit Voltage ($V_{oc}$) | 50.00V |
| Short Circuit Current ($I_{sc}$) | 13.75A |
| Cell Type | Monocrystalline (144 Half-Cells, Grade A) |
| Max System Voltage | DC 1500V |
| Max Overcurrent Protection Rating | 25A |
| Operating Temperature | -40°C to +85°C |
| Application / Fire Class | Class A / Class C |
Mechanical & Physical Characteristics
| Attribute | Specification |
| Dimensions | 2280 mm × 1134 mm × 30 mm |
| Net Weight | 33.1 kg |
| Cell Layout | Black Monocrystalline Cells |
| Frame | Silver Anodized Aluminum (30 mm) |
| Backsheet | White |
| Warranty | 25 Years |
