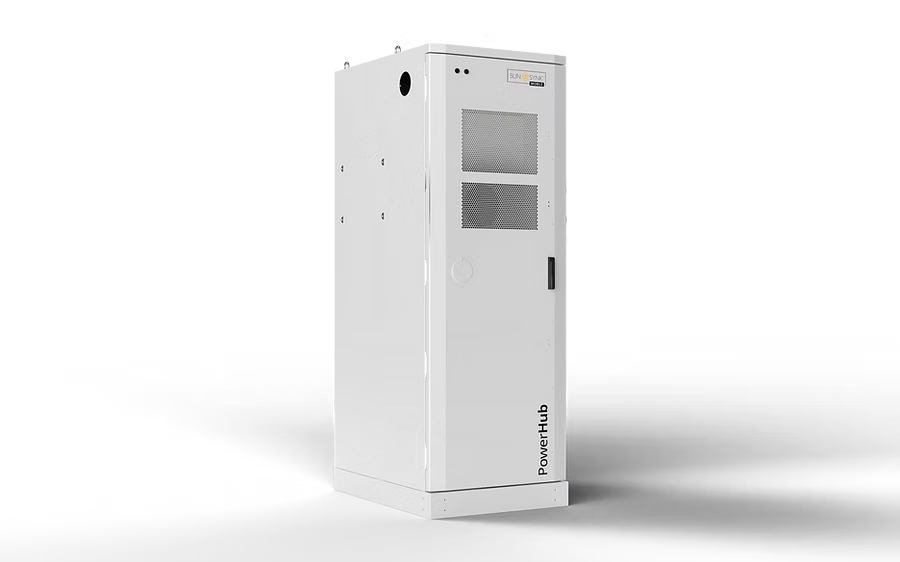

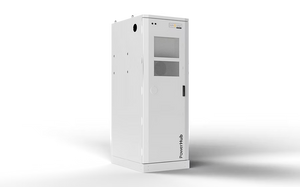

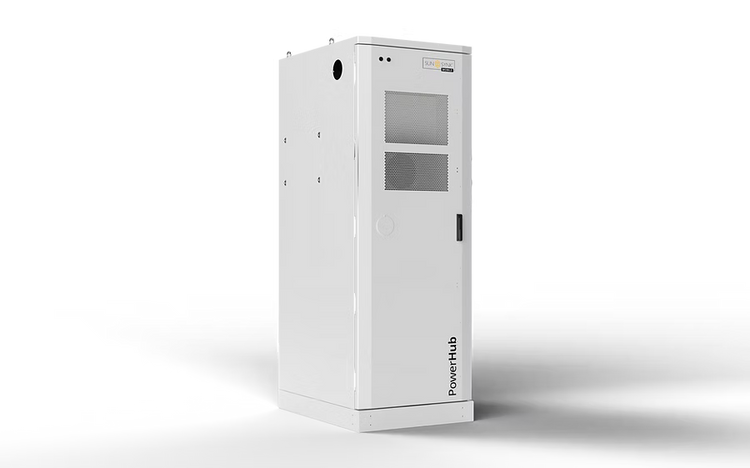

Sunsynk PowerHub 60, a commercial-grade integrated hybrid energy storage and inverter system combining solar, battery, and hybrid inverter technology.
📊 Sunsynk PowerHub 60 – Technical Specification Sheet
🏷️ General
Model: SS-CS-GE-F60
Type: All-in-one hybrid inverter + energy storage system
Nominal Battery Capacity: 61.4 kWh (LiFePO₄)
Usable Battery Energy: ~55.29 kWh
Battery Module Capacity: 100 Ah
Battery Chemistry: Lithium Iron Phosphate (LFP)
System Configuration: Floor-mounted integrated cabinet
IP Rating: IP55 (suitable for outdoor use)
Cooling: Forced fan cooling
Dimensions (H×W×D): ~894 × 294 × 527 mm
Weight: ~1095 kg
Warranty: Typically 10 years system warranty
🔋 Battery & Charging
| Specification | Detail |
|---|---|
| Nominal Battery Energy | 61.4 kWh |
| Usable Energy | 55.29 kWh |
| Battery Nominal Voltage | |
| Max Charge/Discharge Current | ~125 A |
| Battery Type | High-voltage LiFePO₄ |
| Depth of Discharge (DoD) | ~91 % typical |
🔧 Performance
| Metric | Value |
|---|---|
| Round-Trip Efficiency | ~91 % (ENF Solar) |
| Communication Interfaces | CAN, RS485, remote app/screen monitoring (ENF Solar) |
🛠️ Safety & Protection
-
IP55 Rated for outdoor environments.
-
Built-in combustible gas & smoke detection, active exhaust and fire alarm systems.
-
Fire suppression systems included in some configurations.
-
Wi-Fi remote monitoring support standard.
🔄 Scalability
-
Up to 5 PowerHub 60 units can be paralleled for up to ~300 kW output / ~360 kWh storage for larger installations. (segensolar.co.za)
📌 Typical Use Cases
✔ Commercial buildings
✔ Industrial backup power
✔ EV charging buffer with solar integration
✔ Off-grid or grid-connected hybrid scenarios.
