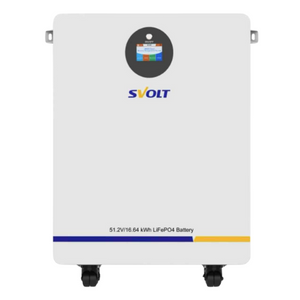

The SVolt 51.2V 325AH 16.64KWH Lithium Battery SCN512325

The SVolt 51.2V 325AH 16.64KWH Lithium Battery SCN512325 is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.

The SVOLT A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets – Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.

Product Features

• A-Grade Cell Technology
• Maintenance-free
• Environmental Friendly
• Wide Variety of Markets
• Renewable Energy
• Built-in Battery Management System
• 5-year Warranty

Specifications:

• Energy: 16.64kWh
• Battery Type-Chemistry: LiFePO4
• Nominal Voltage: 51.2V
• Nominal Capacity: 325Ah
• Rated Energy: 16.64kWh
• Terminal Type: SCREW
• Case Material: SPCC
• BMS Built-in: Yes
• LCD Screen
• Internal Resistance: <25mΩ
• Efficiency – Round Trip: >95%
• Self Discharge per Month: <3%
• Max Parallel Connectors: 16Pcs
• Series Connections: Not Allowed
• Cycle Life: >6000 Cycles
• Discharge Temperature: -20°C to 60°C
• Charge Temperature: 0°C to 55°C
• Storage Temperature: -10°C to 30°C
• Voltage Window: 43.2V – 58.4V
• Recommended Charge Voltage: 56 ±0.20V
• Max Charge Voltage: 58.4 ±0.20V
• Recommended Charge Current: 50A
• Max Continuous Charge Current: 200A
• Recommended Discharge Voltage: 44.8 ±0.20V
• Max Discharging Voltage: 43.2 ±0.20V
• Max Continuous Discharge Current: 200A
• Peak Discharge Current: 250A
• Dimensions: L 888 x W 624 x H437 mm
• Weight: 153.6Kg
